ALTAS

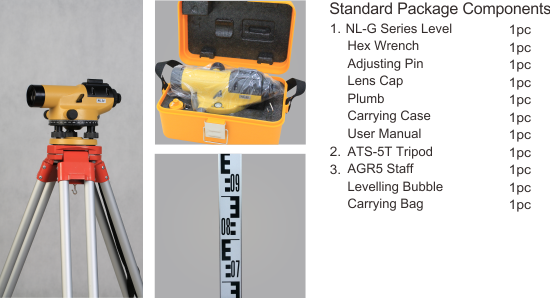

● Auto Level 20X, 24X, 28X, 32X Optional Accurate magnetic damping compensator ● Tripod 5/8 Thread, flat head, twist lock Light weight but durable with carrying strap Long-lasting painting No shrinking or swelling in tough conditions ● Aluminum Staff 5m, 5 sections With ABS buckle, levelling bubble for precise operation Free extension with comfort and stable structure

Model: ALTAS

Download:

ALTAS Brochure

Features
Specification

Features

Specification

Auto Level	Magnification	20X, 24X, 28X, 32X
	Aperture	34mm, 36mm, 36mm, 38mm
	Accuracy	2.5mm, 2.0mm, 1.5mm, 1.0mm
	Image	Erect
	Field of View	1°20’
	Minimum Focusing	0.6m
	Multiplication Const.	100
	Additive Constant	0
	Compensator Type	Magnetic Damping
	Compensator Range	±15’
	Compensator Accuracy	±0.6”
	Sensitivity of Bubble	8’/2mm
	Circle Graduation	360 degrees or 400 gon
	Protection	IP54
	Working Temperature	-20℃ ~ +50℃
Tripod	Extended Height	1600mm
	Closed Height	970mm
	Locking Type	Twist Lock
	Head Type	Flat Head
	Head Size	120mm /45mm
	Leg	Round Leg
Aluminum Staff	Scale	Dual Sides, Large E and Millimeter Scale
	Extended Height	5000mm
	Sections	5 Sections
	Deviation of each meter	±0.5mm
	Overall Deviation	±3mm
Standard Package	Weight	8.6 kgs
Standard Package	Dimension	1265 x 240 x 210mm

Note: all information above is subject to change without any prior notice.
