N80/ N80T

    Industrial Rugged Tablet

Model: N80, N80T

Download:

N80/ N80T Brochure

Features

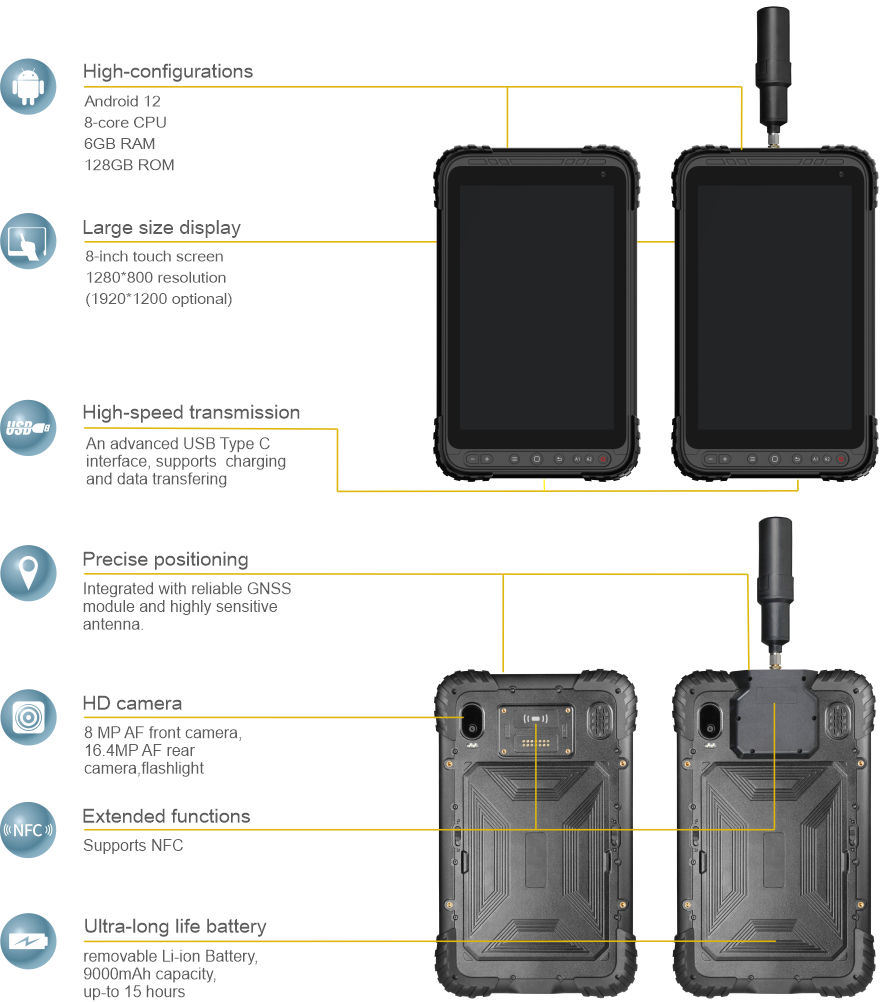

N80/N80T, an industrial GNSS tablet, integrated with high precision GNSS board, high sensitive antenna, 4G network modem, WiFi and dual mode Bluetooth modem, is the leading portable high precision tablet in the field of large-size screen mapping.

Nowadays Internet penetrates every corner of modern industry, setting off an unprecedented reconstruction and transformation of surveys. In this burgeoning era, data sharing is an inevitable trend where N80/N80T simply meets the needs of mapping and GIS industry with its high-speed communication modem.


N80 N80T

Specification

Parameters OS Android 12
CPU Qualcomm 8-core
RAM 6 GB
ROM 128 GB
Storage extension Supports TF card
GNSS Channels N80: 72
N80T: 184
Satellites N80: GPS+GLONASS+GALILEO
N80T: GPS L1C/A, L1C, L2C | GLONASS L1, L2 | GALILEO E1, E5A, E5B | BD B1I, B2I, B3I, B1C, B2A | QZSS L1C/A, L2C | SBAS L1C/A
Autonomouse N80: 5m-2m
N80T: 1.5m
Single baseline RTK N80: -
N80T: 1cm+1ppm
External GNSS antenna N80: -
N80T: Supports
Communication Cellular GSM: 850/900/1800/1900
CDMA: BC0
EVDO: BC0
WCDMA: B1/B2/B5/B8
TD-SCDMA: B34/B39
TDDLTE: B38/B39/B40/B41
FDDLTE: B1/B2/B3/B4/B5/B7/B8/B17/B20/B28
SIM slot Dual nano SIM card slots
Wi-Fi 802.11 a/b/g/n/ac, 2.4GHz/5GHz
Bluetooth Bluetooth v4.2
NFC Supports
USB Type-C, supports OTG
Hardwares Display 8-inch, 500 nits, 1280×800 (1920×1200 optional)
Rear camera 16.4MP
Flash light Supports
Front camera 8MP
Sensor Microphone, Speaker, G-Sensor, Gyroscope, Light Sensor, e-compass, Acceleration, Proximity Sensor, Rotation Vector
Electric Battery 9000mAh Li-ion
Battery life 15 hours
Physical Size 245mm×152mm×18mm
Weight N80: 650g
N80T: 750g
Buttons volume -, volume +, menu, home, back, A1, A2, Power
Environmental Operation -20℃~ 60℃
Storage -30℃~ 70℃
Waterproof/ Dustproof IP67
Drop 1.2m, MIL-STD-810G certification
Humidity 5%-95% no condensation

Note: all information above is subject to change without any prior notice.
