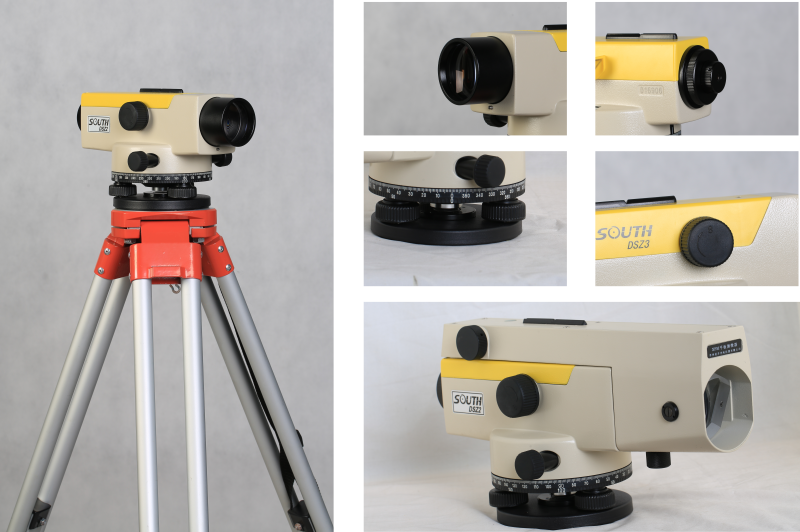

DSZ2

    ● High resolution 32X telescope ● ±0.3" compensator accuracy ● Standard deviation: 1.0mm ● Resolving power (telescope) 3"

Model: DSZ2

Download:

DSZ2 Brochure

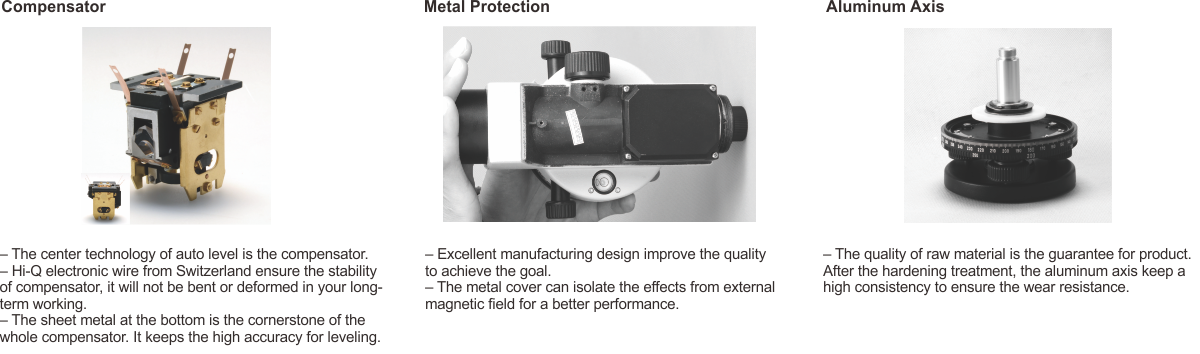

Features

DSZ



DSZ

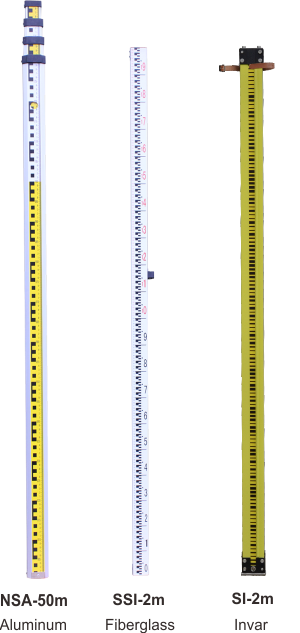

Barcode Staff for Digital Level


1new

Specification

Auto Level Magnification 32x
Effective Objective Aperture 45mm
Image Erect
Reticle Cross Reticle
Field of View 1°30′ (2.6m /100m)
Minimum Focus Distance 0.6m
Multiplication Constant 100
Additive Constant 0
Compensator Type Magnetic Damping
Compensator Range ±15′
Compensator Setting Time <1s
Compensator Setting Accuracy ±0.3″
Standard 1km Deviation 1.0mm
Sensitivity of Bubble 8′ /2mm
Circle Graduation 360° or 400 gon (Minimum 1°or 1 gon)
Protection Class IP65
Working Temperature -20℃ ~ +50℃
Storage Temperature -40℃ ~ +70℃
Net Weight per Unit 2.2kg
Package Size (4 PCS/CTN) 465×340×445(mm)
Gross Weight (4 PCS/CTN) 15kg

Note: all information above is subject to change without any prior notice.
