PD-54N

● Measuring Range: 40m ● Easy Portable for the Small Size ● Simple Operation by 7 Keys ● Large LCD Screen with Illumination

Model: PD-54N

Download:

PD Series Brochure

Features
Specification

Features

PD-54-1

Specification

PD Series	Measuring Range	0.05-40m
	Measuring Precision (typical)	±1.5mm
	Laser Class	620-690nm, ＜1mW
	Laser Type	II
	Type	indoor
	Selectable Datum Side	●
	Display Illumination	●
	Single/ Continuous Measurement	●

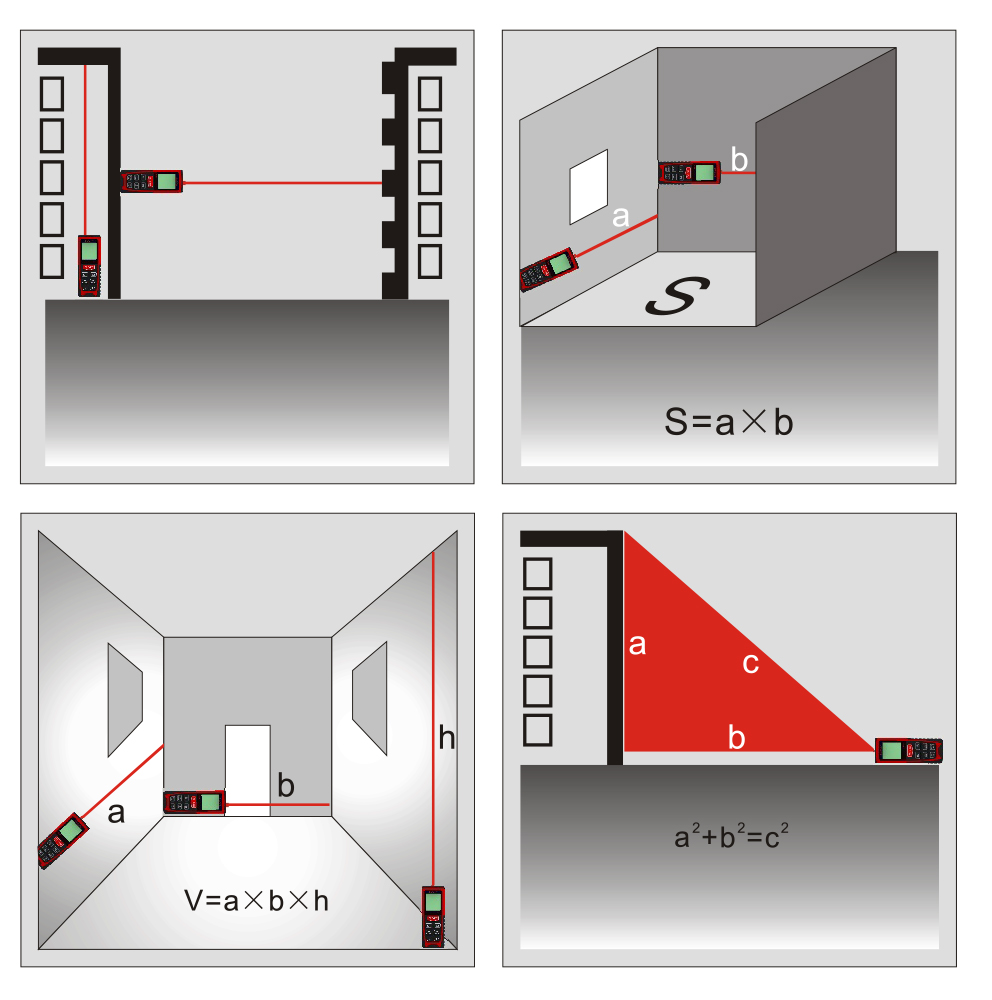

	Area Measurement	●
	Volume Measurement	●
	Single Pythagoras	●
	Double Pythagoras	●
	Plus/minus Calculation	●
	Measuring Extended Edge	●
	Time Delay Measurement	●
	Dip Angle Measurement	○
	Distance Stake-out	○
	Data Storage	○
	Metope Measurement	○
	Triangle Area	○
	Trapezoidal Measurement	○
	Graphics Auxiliary Targeting	○
	Display Unit	Three lines stroke segment
	Unit Conversion	M/ft/inch
	Key	seven keys
	Battery	2×1.5V AAA battery
	Battery Life	5000 times
	Size (mm)	122×45×26

Note: all information above is subject to change without any prior notice.
