● 1000m Visible pointer and pinpoint accuracy (≤4cm/1000m) ● 1000m Extreme long-range laser ● Up to 2” accuracy ● Clear & large LCD display unit ● Designed to complete the pipe jacking applications

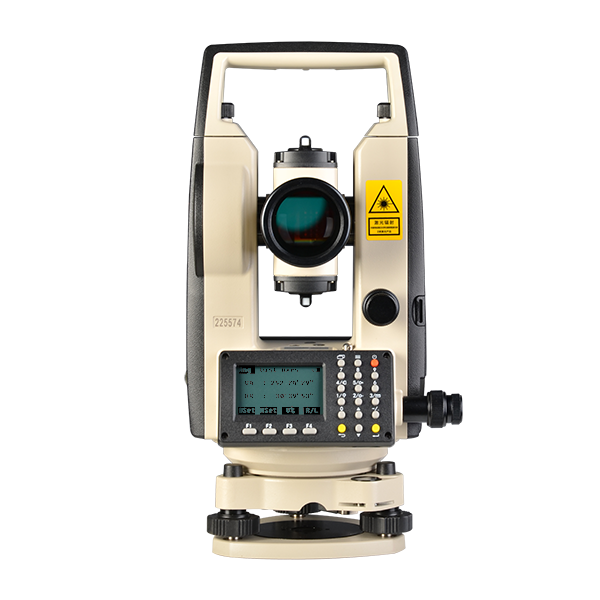

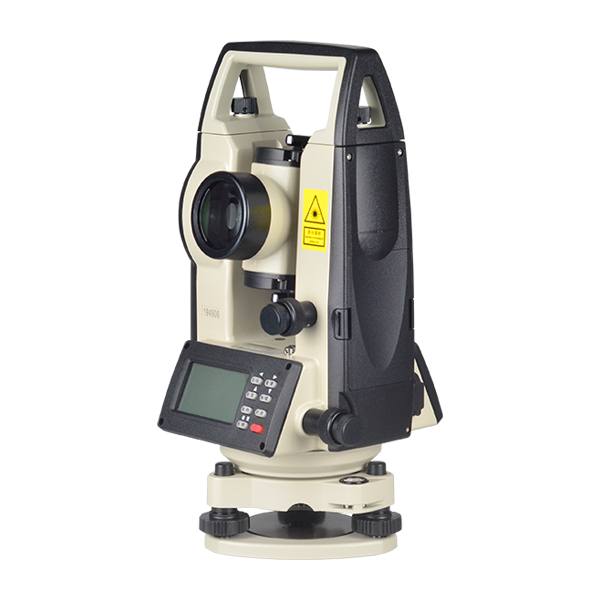

Model: NT-02D

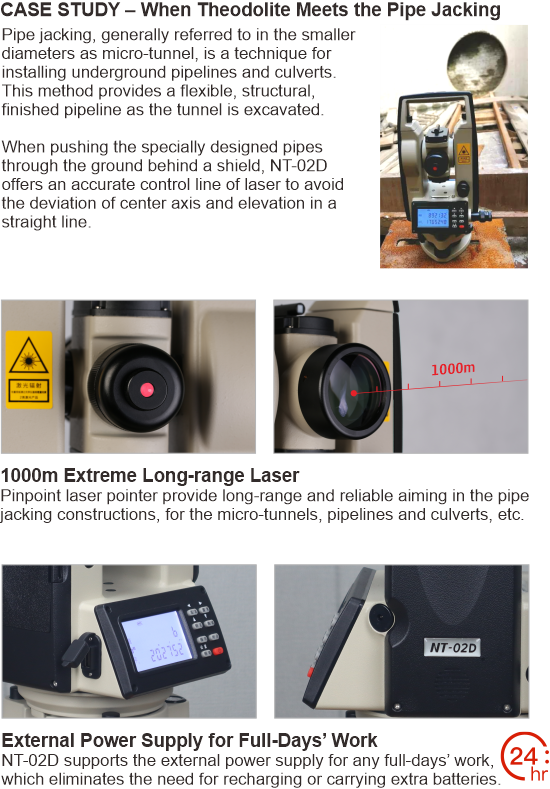

NT-02D Brochure


未命名 -1


Angle Measurement Measuring Method Absolute Encoding
Diameter of Encoder Disk 79mm
Minimum Reading 1"
Accuracy 2"
Detection Method Horizontal: Dual, Vertical: Dual
Telescope Image Erect
Magnification 26.5x
Effective Aperture 40mm
Resolving Power 3"
Field of View 1°30'
Minimum Focus Range 1.5m
Multiple Constant 100
Additive Constant 0
Tube Length 155mm
Laser Wavelength 635±20nm
Laser Class Class II
Diameter <4mm/1000m
Tolerance <10"
Compensator Type Single Axis
Working Range ±3'
Accuracy ±3"
Bubble Plate Bubble 30"/2mm
Circular Bubble 8'/2mm
Laser Plummet Accuracy ±1.5mm, at 1.5m
Diameter ±2.5mm, at 1.5m
Wavelength 635±20nm
Laser Class Class II
Display Unit Type 2.7 Inch LCD screen
Power Supply Battery 7.4V, Lithium battery, 8h
Working Environment
Range -20℃~ +50℃
Dimension Size 165*160*340mm
Weight 4.7kgs

Note: all information above is subject to change without any prior notice.
