SV30

●Advanced digital signal processing technology ●High accurate measurement for sound velocity and temperature ●Anti-corrosion and pressure resistant 316l stainless steel hull ●Simple operation and friendly software ●Support multiple data format export

Model: SV30

Features

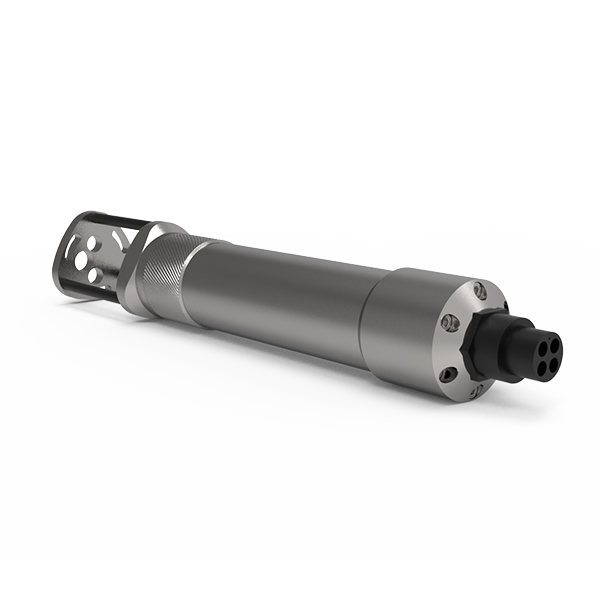

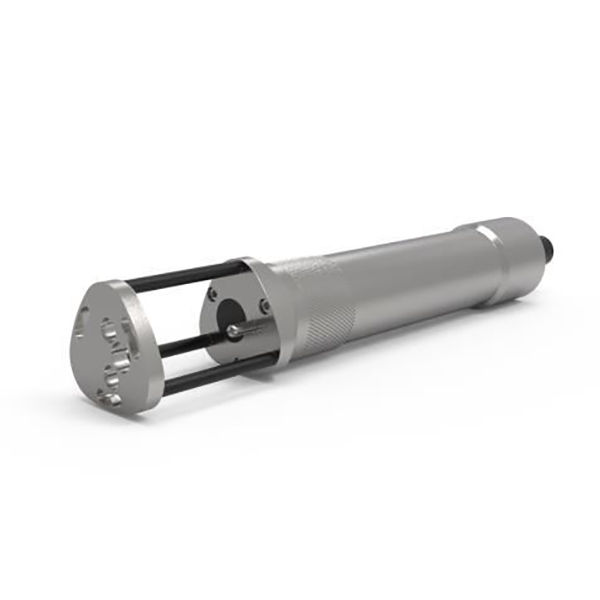

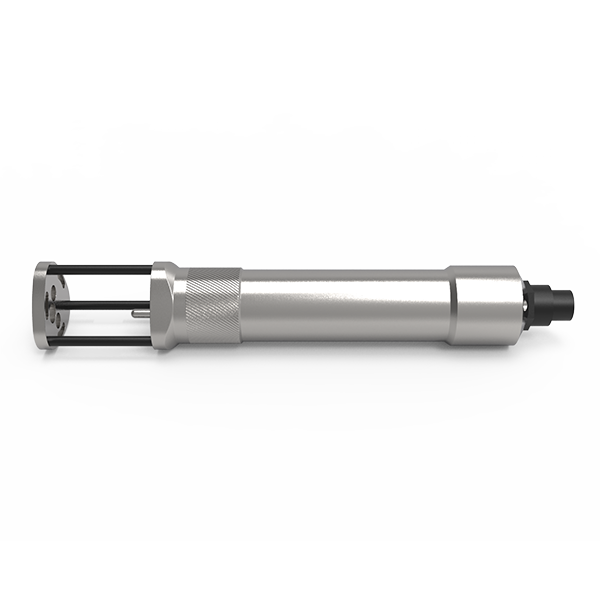

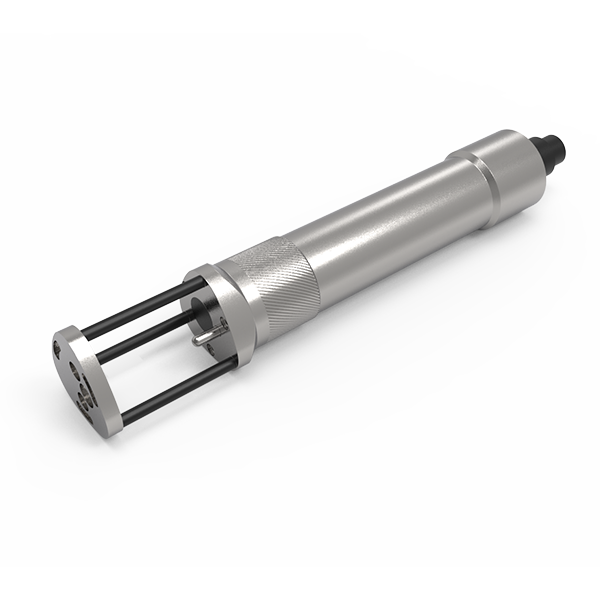

SV30 is the light, portable, high performance and simple operated sound velocity sensor. SV30 direct measurement of sound velocity using direct-reading ultrasonic echo-detection techniques for 2Mhz sensing components. With the advanced digital signal processing technology, the accuracy of sound velocity measurement is improved to 0.03 m/s.

Specification

Survey	Sound velocity range	1400m/s～1900m/s
	Sound velocity resolution	0.001m/s
	Measurement accuracy	0.03m/s
	Acoustic Frequency	2MHz
	Temperature sensor	RT1000
	Temperature range	0～50℃
	Temperature resolution	0.001℃
	Temperature accuracy	0.05℃
Electricity	Power voltage	9V～36VDC
	Communication	RS232
	Communicated rate	9600～115200bps
Physical	Working depth	50m
	Weight	1.5kg
	Size	266mm(L) × 40mm(Dia)

Note: all information above is subject to change without any prior notice.
