ARF-AS1-3D-FS

Model: ARF-AS1-3D-FS

Download:

ARF-AS1-3D-FS Brochure

Features

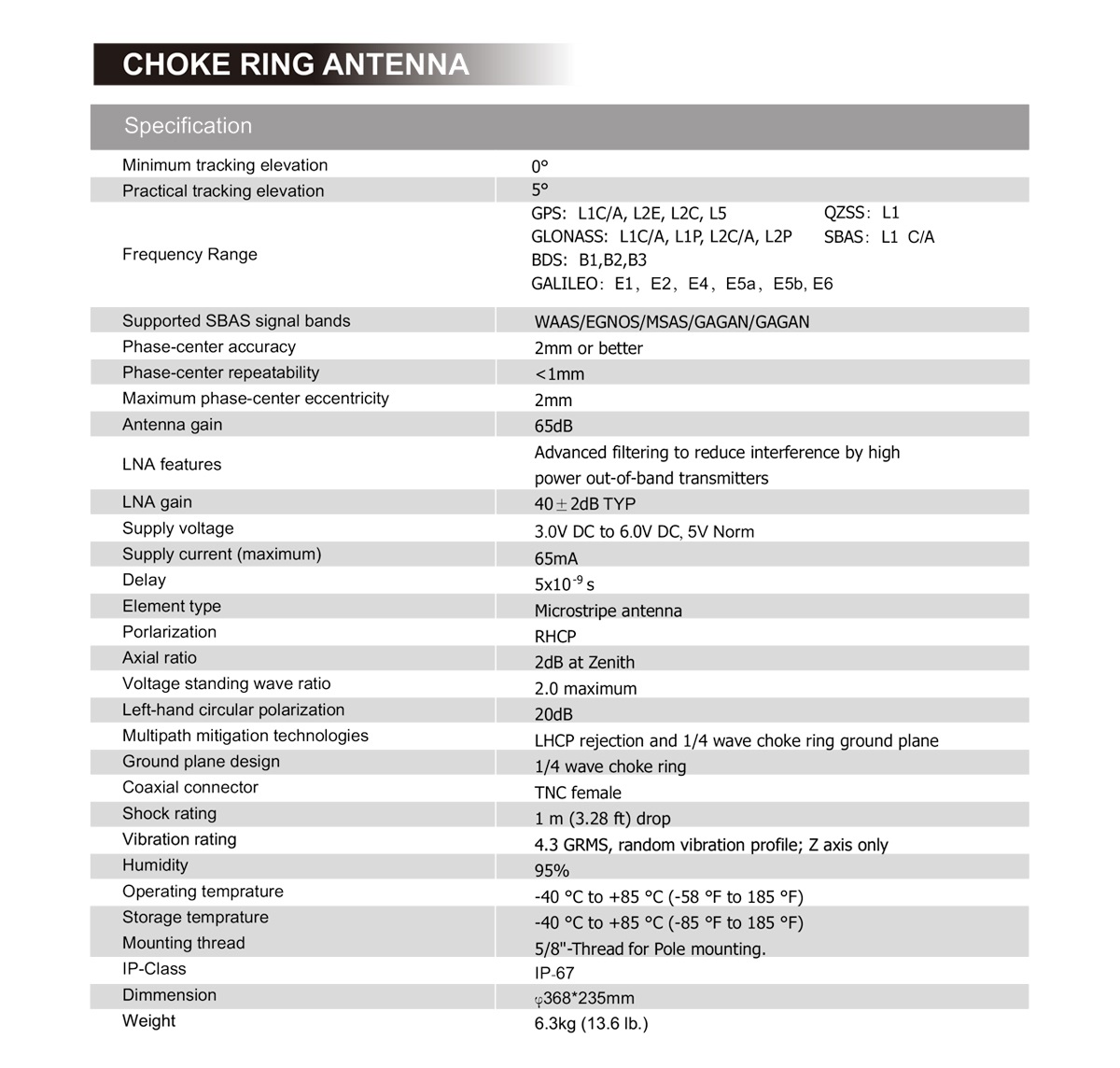

Specification

Features

● The South ARF-AS1-3D-FS provides a stable phase center offsets at sub-millimeter level to guarantee your reference station an excellent

tracking performance.

● 3D choke rings design inside the antenna helps achieve an outstanding multipath rejection performance.

● High-gain design for low elevation tracking enhances signal availability for more satellites.

● Ultralow line loss on signal transmissions, enables connecting cable extend more than 100 meters carrying undamaged signals.

● Fully sealed core components, waterproof and dustproof design, make it withstand severe conditions for continuous work in the field

CR3-G3

Parameter
