T200

    ●Up to 165° swath coverage ●Up to 500m measured depth ●Up to 6mm resolution ●Up to 512 beams ●Smart bottom track algorithm

Model: T200

Download:

T200 Brochure

Features

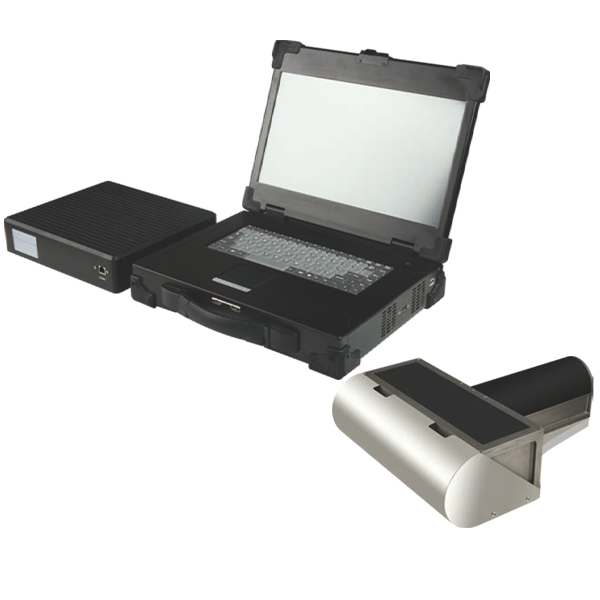

T200 is a high-precision and portable  multi-beam echo sounder. It can combine with  INS(inertial navigation system) and sound velocity sensor, can support Hypack, PDS and Qinsy. T200’s rugged design with additional protected cap will protect the transducer in water when some front crash happens. The advantaged bottom track algorithm can offer users reliable and accurate result.T200 is applied to hydrographic survey in channels, ports, sea, rivers and lakes.


Specification

T200 Specifications Data
Swath coverage 165°
Across-track beam width 1°
Along-track beam width 2°
Number of beam 512
Measuring depth range 0.5-500m
Ping rate up to 60 Hz
Depth resolution 6mm
Beam roll stability ±10
Transducer Tx unit size 240mm*120mm*160mm
Transducer Rx unit size 445mm*117mm*160mm
Wet weight 19kg (Including transducer, protected cap, SV sensor  )
Processing host size 280mm*250mm*62mm
Processing host weight 3.4kg
Cable length 15m, customizable
Power supply AC220V±10%，50Hz±5%
Power consumption up to200W
Depth of the pressure 50m
Storage temperature   -2℃~55℃
Working temperature -2℃~40℃

Note: all information above is subject to change without any prior notice.
