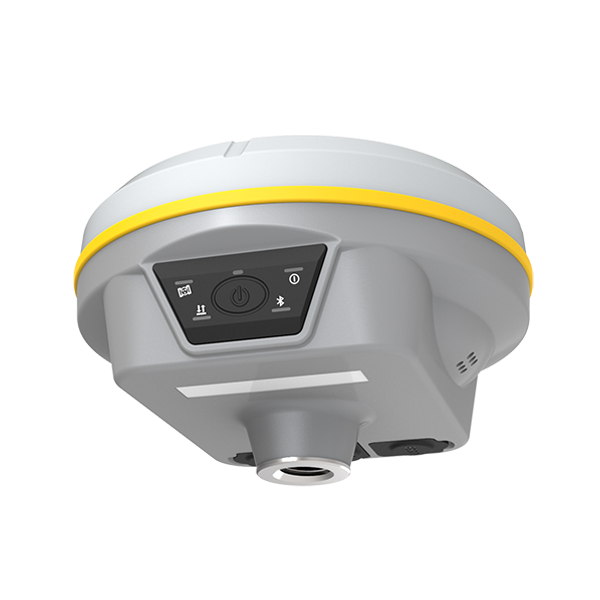

Galaxy G3

    Model: Galaxy G3

    Download:

    Galaxy G3 Brochure

    Features

    Galaxy G3 web

    Specification

    GNSS Features Channels 1598
    GPS L1, L1C, L2C, L2P, L5
    GLONASS L1C/A,L1P,L2C/A,L2P,L3*
    BDS BDS-2: B1I, B2I, B3I
    BDS-3: B1I, B3I, B1C, B2a, B2b*
    GALILEO E1, E5A, E5B, E6C, AltBOC*
    SBAS(WAAS/MSAS/EGNOS/GAGAN) L1*
    IRNSS L5*
    QZSS L1, L2C, L5*
    MSS L-Band BDS-PPP, GALILEO-HAS*
    Positioning output rate 1Hz~20Hz
    Initialization time < 10s
    Initialization reliability > 99.99%
    Positioning Precision Code differential GNSS positioning Horizontal: 0.25 m + 1 ppm RMS
    Vertical: 0.50 m + 1 ppm RMS
    Static(long observations) Horizontal: 2.5 mm + 1 ppm RMS
    Vertical: 3 mm + 0.4 ppm RMS
    Static Horizontal: 2.5 mm + 0.5 ppm RMS
    Vertical: 3.5 mm + 0.5 ppm RMS
    Rapid static Horizontal: 2.5 mm + 0.5 ppm RMS
    Vertical: 5 mm + 0.5 ppm RMS
    PPK Horizontal: 3 mm + 1 ppm RMS
    Vertical: 5 mm + 1 ppm RMS
    RTK(UHF) Horizontal: 8 mm + 1 ppm RMS
    Vertical: 15 mm + 1 ppm RMS
    RTK(NTRIP) Horizontal: 8 mm + 0.5 ppm RMS
    Vertical: 15 mm + 0.5 ppm RMS
    RTK initialization time 2 ~ 8s
    SBAS positioning Typically < 5m 3DRMS
    BANDA-L Horizontal: 5-10cm (5-30min)
    Vertical: 10-30cm (5-30min)
    IMU Less than 10mm + 0.7 mm/° tilt to 30°
    IMU tilt angle 0° ~ 60°
    Hardware Performance Dimension 130mm(W) ×130mm(L) × 80mm(H)
    Weight 790g (battery included)
    Material Magnesium aluminum alloy shell
    Operating temperature -45℃ ~ +65℃
    Storage temperature -45℃ ~ +85℃
    Humidity 100% Non-condensing
    Waterproof/Dustproof IP68 standard, protected from long time immersion to depth of 1m IP68 standard, fully protected against
    blowing dust
    Shock/Vibration Withstand 2 meters pole drop onto the cement ground naturally
    MIL-STD 810G
    Power supply 6-28V DC, overvoltage protection
    Battery Inbuilt 7.2V 6800mAh rechargeable, Li-ion battery
    Battery life 15h (Rover Bluetooth mode)
    Communications I/O Port 5-PIN LEMO external power port + RS232 Type-C (charge, OTG to USB disk, data transfer with PC or phone, Ethernet)
    1 UHF antenna TNC interface
    Internal UHF 2W radio, receive and transmit, radio router and radio repeater
    Frequency range 410 - 470MHz
    Communication protocol Farlink, Trimtalk450s, SOUTH, HUACE, Hi-target, Satel
    Communication range Typically 8km with Farlink protocol
    NFC Communication Realizing close range (shorter than 10cm) automatic pair between receiver and controller (controller requires NFC wireless communication module else)
    Bluetooth Bluetooth 3.0/4.1 standard, Bluetooth 2.1 + EDR
    WIFI Modem 802.11 b/g standard
    WIFI hotspot AP mode, Receiver broadcasts its hotspot form web UI accessing with any mobile terminals
    WIFI datalink Client mode, Receiver can transmit and receive correction data stream via WiFi datalink
    Data Storage/Transmission Storage 4GB SSD Automatic cycle storage (The earliest data files will be removed automatically while the memory is not enough)
    Support external USB storage
    Data transmission Plug and play mode of USB data transmission
    Supports FTP/HTTP data download
    Data format Static data format: STH, Rinex2.01, Rinex3.02 and etc.
    Differential format: RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2
    GPS output data format: NMEA 0183, PJK plane coordinate, SOUTH Binary code
    Network model support: VRS, FKP, MAC, fully support NTRIP protocol
    Sensors Electronic bubble Controller software can display electronic bubble, checking leveling status of the carbon pole in real-time
    IMU Built-in IMU module, calibration-free and immue to magnetic interference
    Thermometer Built-in thermometer sensor, adopting intelligent temperature control technology, monitoring and adjusting the receiver temperature
    User Interaction Operating system Linux
    Buttons One button
    Indicators 5 LED indicators(Satellite, Charging, Power, Datalink, Bluetooth)
    Web interaction With the access of the internal web interface management via WiFi or USB connection, users are able to monitor the receiver status and change the configurations freely
    Voice guidance It provides status and operation voice guidance, and supports Chinese/English/Korean/Spanish/Portuguese/Russian/Turkish
    Secondary development Provides secondary development kit, and opens the OpenSIC observation data format and interaction interface definition
    Cloud service The powerful cloud platform provides online services like remote manage, firmware update, online register and etc.

    Items marked with * will be upgraded with the update of the firmware version The data comes from the SOUTH GNSS product laboratory, and the specific situation is subject to local actual usage. The measurement accuracy, precision and reliability are associated to various factors, including number of satellite tracking, observation time, multi-path, etc.
