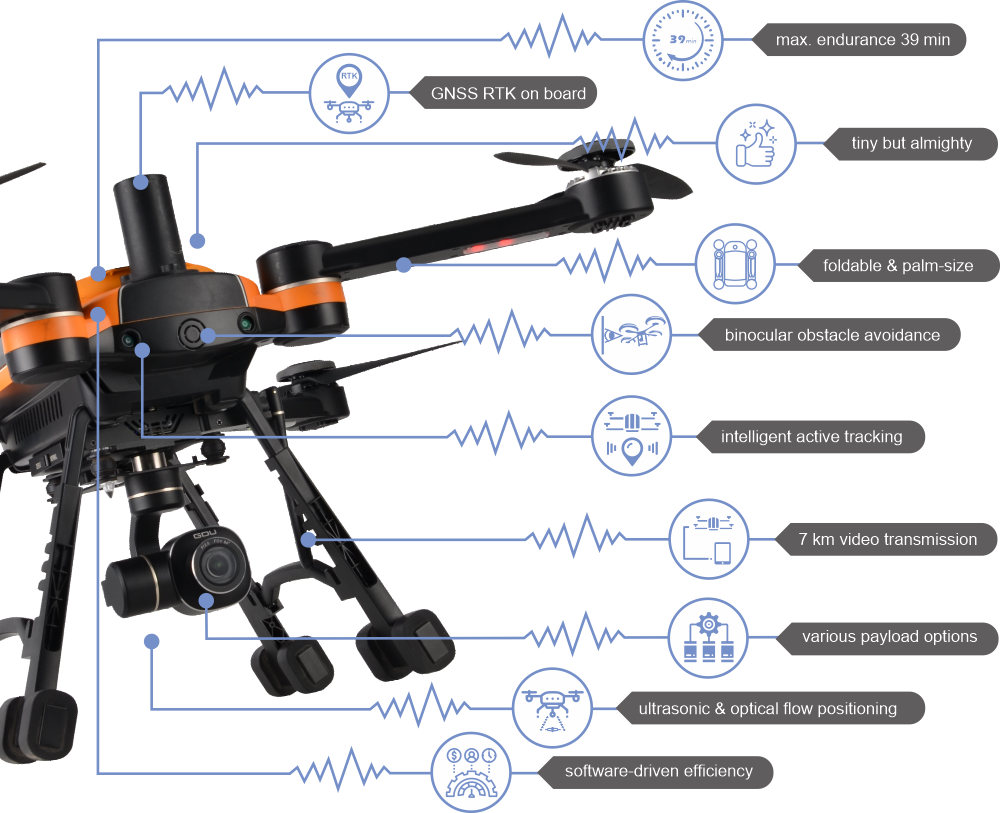

Features
Applications
Specification
Operational video

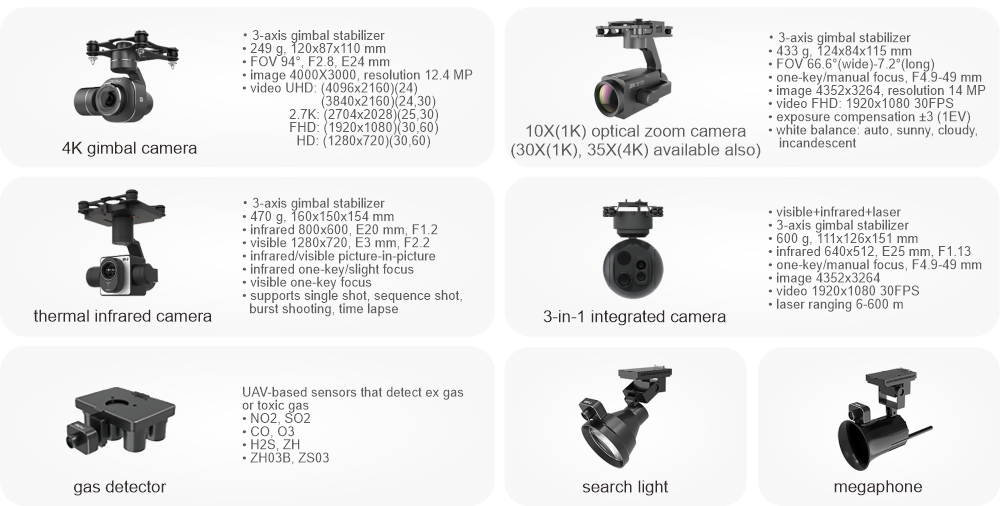

PAYLOADS

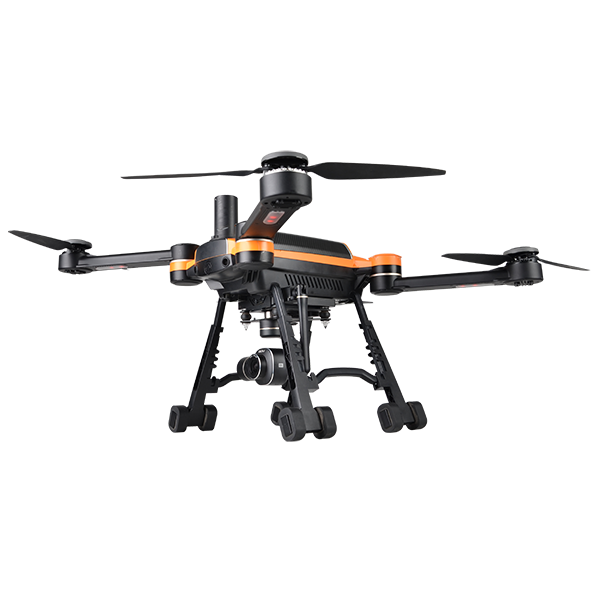

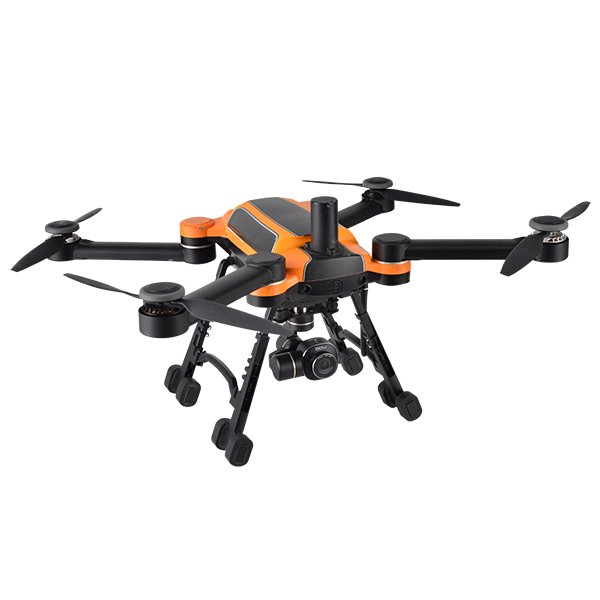

Model | name | Firefly/ Firefly Pro |
Drone | Dimension | Firefly: 745x555x252 mm (unfolded); 273x224x107 mm (folded) Firefly Pro: 745x555x292 mm (unfolded); 273x224x147 mm (folded) |
Weight (without payload) | Firefly: 2.4 kg Firefly Pro: 2.45 kg |
|
Maximum Take-off Weight | Firefly: 3.4 kg Firefly Pro: 3.45 kg |
|
Payload Capacity | max. 1 kg | |
Maximum Ceiling | 3500 m | |
Wind Resistance | 10 m/s (Beaufort 5) | |
Working Temperature | -10~+50 ℃ | |
Power Supply | Lithium-polymer battery, 4S, 12000 mAh, 15.2 V, 182.4 Wh | |
Flight Endurance | max. 39 min | |
Cruising Speed | max. 15 m/s (sport mode) | |
Ascending Speed | max. 5 m/s (sport mode) | |
Descending Speed | 3 m/s | |
Hovering Accuracy (P-GPS) | H. ±1.5 m (downward vision: ±0.3 m); V. ±0.5 m (downward vision: ±0.1 m); | |
Hovering Accuracy (D-RTK) | Firefly: / Firefly Pro: H. ±0.2 m; V. ±0.1 m |
|
Dual RTK Direction Detection | Firefly: / Firefly Pro: accuracy ±1° |
|
Forward Vision System | Detecting Range | 0.5~15 m |
Suited Environment | obstacles with rich textures & moderate lighting (>15 lux, normal indoor fluorescent light) | |
Downward Vision System | Tachometer Range | speed ≤10 m/s (@AGL 8m, moderate lighting) |
Precise Hovering Range | 0.3 ~8 m | |
Suited Environment | obstacles with rich textures & moderate lighting (>15 lux, normal indoor fluorescent light) | |
Remote Controller | Control Frequency | 2.4 GHz |
Radio Datalink Range | max. 7 km (with moderate intervisibility) | |
Working Temperature | -10~+50 ℃ | |
Power Supply | Lithium battery built in, 5000 mAh, 8.4 V | |
Communication Interface | Type-A, USB | |
Charger | Purpose | for drone battery and remote controller both |
Rated Power | 68 W | |
Voltage | 16.8 V |
Note: all information above is subject to change without any prior notice.
