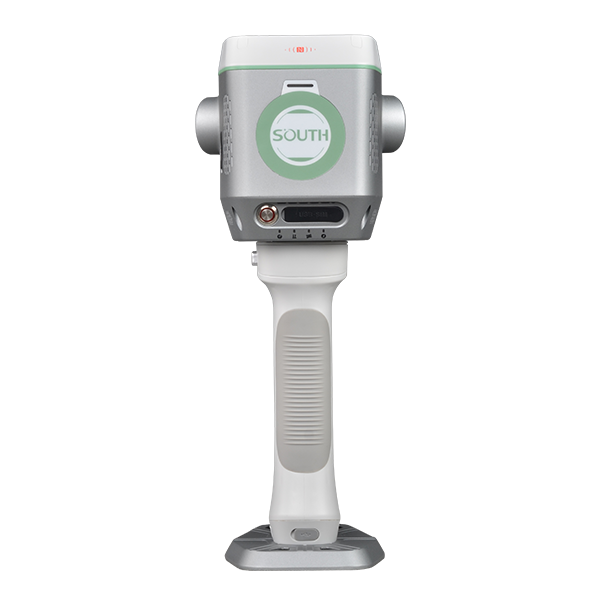

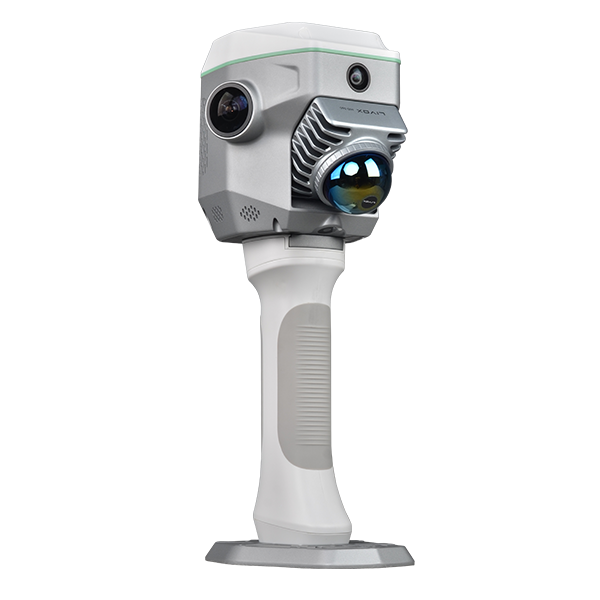

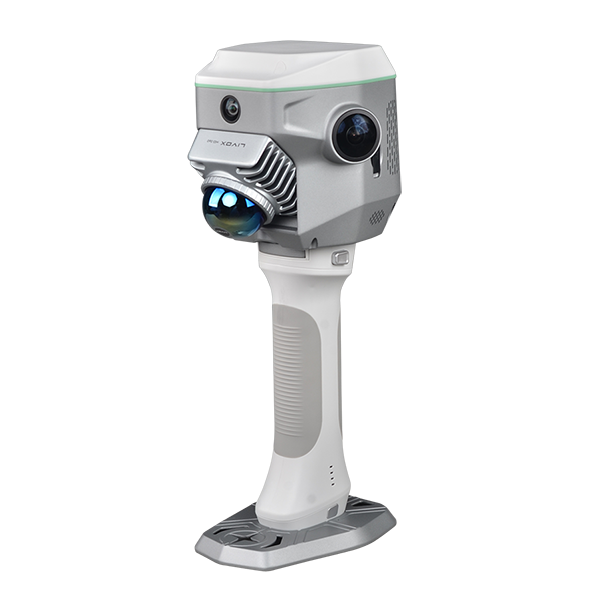

GNSS RTK Hybrid Supreme ME

    Model: ME/ME Plus

    Download:

    GNSS RTK Hybrid Supreme ME Brochure

    Features

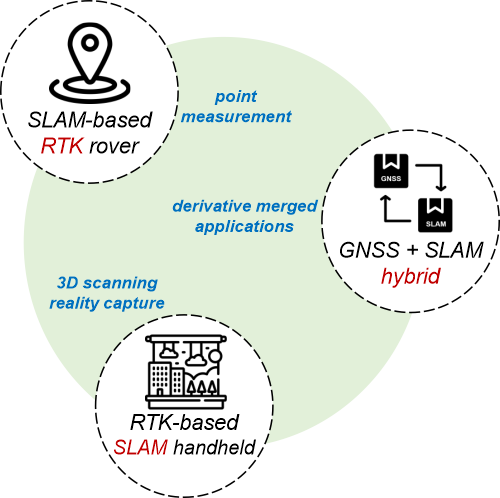

    When RTK Meets SLAM

    1+1＞2 Is True


    SLAM RTK ME


    Specification

    PHYSICAL Dimension 13 x 147 x 138 mm
    Net Weight 1.38 kg
    Camera (for SLAM) 12MP x2 left and right, 8MP x1 forward
    Camera (for GNSS) 2MP x1 downward
    Laser Scanner Livox Mid-360
    Temperature Sensor built in, intelligent variable frequency control
    IMU Module built in for GNSS, and supports tilt survey option
    Wi-Fi Module built in and serves as a hotspot source
    Network Telecom SIM card slot built in, Nano SIM
    Radio Wireless ME: N/A
    ME Plus: available
    ELECTRICAL Power Supply inbuilt battery + handgrip battery
    Endurance inbuilt battery ≥0.5h; handgrip battery ≥2h
    Power Consumption 26 W
    Charging 1-2 h
    Input Voltage 14.4 V
    Power Output 30 W
    TECHNICAL GNSS Features full constellation tracking and smart dynamic sensitivity positioning technology
    GNSS Performance: Signal Tracking 1,698 channels
    GNSS Performance: Multi-constellation GPS/Glonass/BDS/Galileo/QZSS/NavIC/IRNSS/SBAS
    GNSS Performance: Positioning Output Frequency 1-10 Hz
    GNSS Performance: Initialization Time ＜ 10 sec
    GNSS Performance: Cold Restart ＜ 12 sec
    GNSS Performance: Initialization Reliability ＞ 99.9%
    GNSS Performance: IMU Refresh Rate 200 Hz
    GNSS Accuracy: Single Point Positioning H. 1.5m RMS; V. 2.5m RMS
    GNSS Accuracy: DGPS H. 0.4m RMS; V. 0.8m RMS
    GNSS Accuracy: Real Time Kinematic (RTK) H. 8mm+1ppm RMS; V. 15mm+1ppm RMS
    GNSS Accuracy: Post Processed Kinematic (PPK) H. 3mm+1ppm RMS; V. 5mm+1ppm RMS
    GNSS Accuracy: Precise Point Positioning (PPP) supports PPP-B2b, H. 10 cm; V. 20 cm
    GNSS Accuracy: High-precision Static H. 2.5mm+0.1ppm RMS; V. 3.5mm+0.4ppm RMS
    GNSS Accuracy: Static and Rapid Static H. 2.5mm+0.5ppm RMS; V. 5mm+0.5ppm RMS
    GNSS Accuracy: Code Differential H. 0.4m RMS; V. 0.8m RMS
    GNSS Accuracy: Positioning Refresh Rate 1Hz/5Hz/10Hz
    GNSS Accuracy: Time for First Fixed Solution cold start 45sec; hot start 10sec; single repeat 1sec
    SLAM Performance: Scanning Range 0.1-70m (70m/40m @ 80%/10% reflectivity)
    SLAM Performance: Measurement Rate 200,000 pts/sec
    SLAM Performance: Field Of View (FOV) 360°x 59°
    SLAM Performance: Laser Wavelength 905 nm
    SLAM Performance: Laser Safety Class Class 1 (IEC 60825-1:2014), eye-safe
    SLAM Performance: Loop Closure Free available when RTK is enabled outdoors
    SLAM Performance: PPK Mode available
    SLAM Accuracy: Realtime Assessment available
    SLAM Accuracy: Relative Accuracy ≤10 mm
    SLAM Accuracy: Range Noise approx. 5-20 mm (optimized)
    SLAM Accuracy: Absolute Accuracy (RTK) best up to 3-5 cm (powered by onboard RTK)
    SLAM Accuracy: Absolute Accuracy (PPK) best up to 2-4 cm (post processed)
    Merged Applications: Positioning Accuracy while Satellites Unlocked (known as Magicalc) best up to 2-3 cm, typical 5-10 cm
    Merged Applications: Contactless Measurement Accuracy ≤5 cm (@15 m)
    Merged Applications: Super Stake-out Accuracy optimal H. 8mm+1ppm RMS; V. 15mm+1ppm RMS
    typical H. 10mm+1ppm RMS; V. 20mm+1ppm RMS
    AR Stake-out Performance: Visual Stake-out Accuracy optimal H. 8mm+1ppm RMS; V. 15mm+1ppm RMS
    typical H. 10mm+1ppm RMS; V. 20mm+1ppm RMS
    COMMUNICATION Radio Datalink ME: N/A
    ME Plus: Rx module built in
    Voice Language CHN/ENG/KOR/RUS/PRT/ESP/TUR as default
    Audio Messaging iVoice smart audio for status broadcasting and instructions
    Bluetooth BT4.2 (BR/EDR+BLE) standard
    NFC Wireless auto pairing between device and controller by touch
    WLAN 802.11b/g/n standard
    ENVIRONMENTAL Working Temperature -20℃ ~ +55℃
    Storage Temperature -40℃ ~ +80℃
    Operating Humidity 80% non-condensing
    DATA MANAGEMENT Data Format Static: South STH, Rinex2/3.02, etc.; Differential: RTCM3.0/3.2; GPS output: NMEA0183, PJK plane coordinate, binary code; Network Mode: VRS/FKP/MAC/N-trip

    Note: all information above is subject to change without any prior notice.
