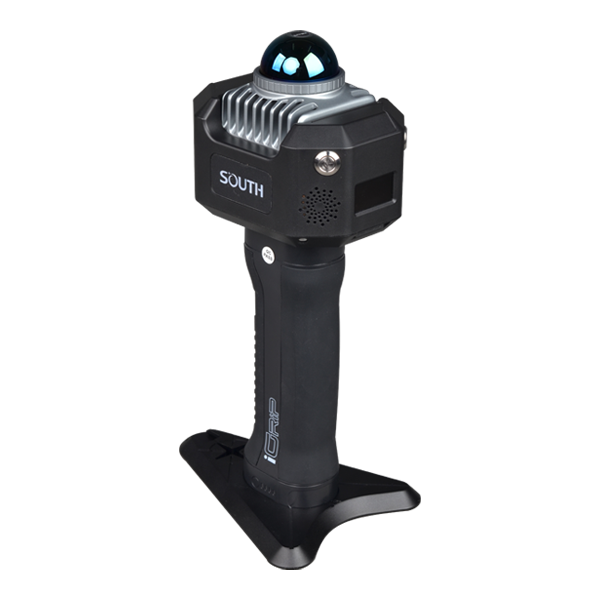

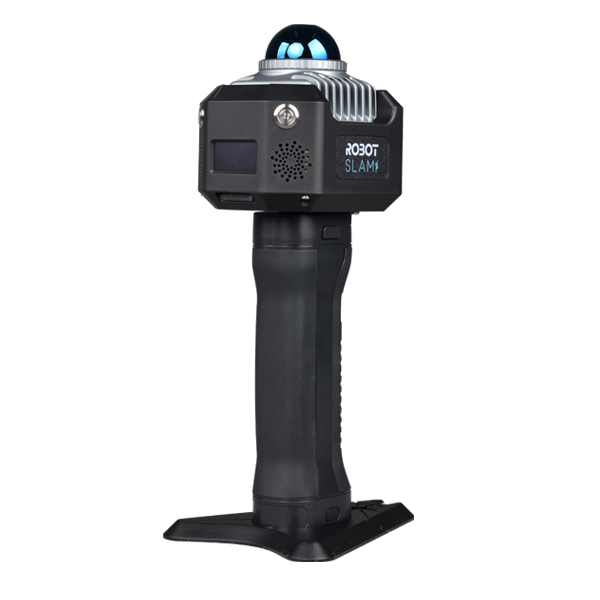

RobotSLAM Lite II Handheld 3D Laser Scanner

    Model: RobotSLAM Lite II

    Download:

    RobotSLAM Lite II Handheld Laser Scanner brochure

    Features

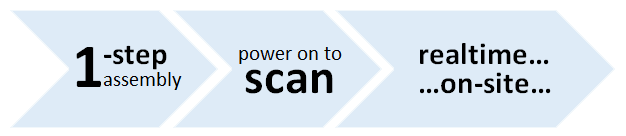

    Compact. Lightweight. Intelligent.



    A user-friendly SLAM handheld is supposed to be toolless assembly, cableless operation, and lightweight. RobotSLAM Lite II, featuring entry-level and affordability, is designed to fit indoor scans mostly due to its maximum range 70m and typically effective range 40m.


    QQ_1760940236527

    Applications

    1

    Specification

    RobotSLAM Lite II Dimension 1300 x 900 x 2900 mm (w/o base stand)
    Weight 0.99 kg
    Laser Wavelength 905 nm
    Laser Safety Class Class 1 (IEC 60825-1:2014), eye-safe
    Scan Range 0.1-70m (70m/40m @80%/10% reflectivity)
    Scan Rate 200,000 pts/sec
    LED Screen available for status display
    IMU Module built-in, with push frequency 200 Hz (when enabled)
    Camera built-in, 13 MP fish-eye
    Relative Accuracy best up to 1 cm
    Realtime Point Cloud available, to display via APP
    Realtime Trajectory available
    Power Supply handgrip with inbuilt battery, cable free
    Endurance 2-2.5 hrs
    Input Voltage DC 9-27 V
    Anti-interference available
    Temperature -20℃~65℃ (operating); -40℃~70℃
    IP Rating IP 67 (laser scanner sensor)

    Note: all information above is subject to change without any prior notice.
