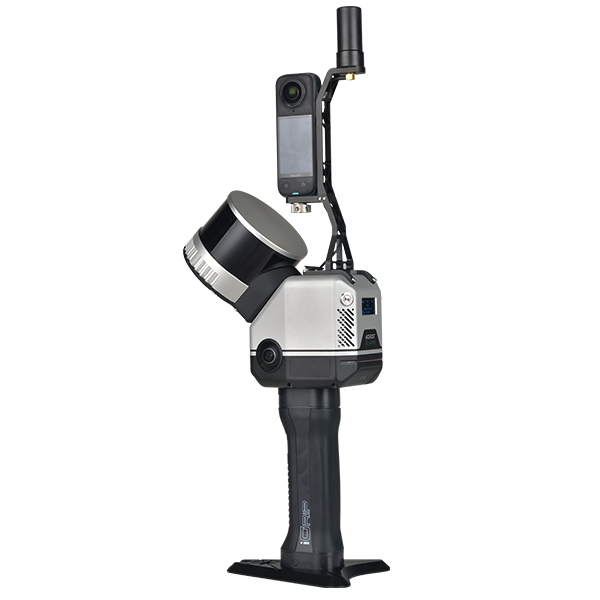

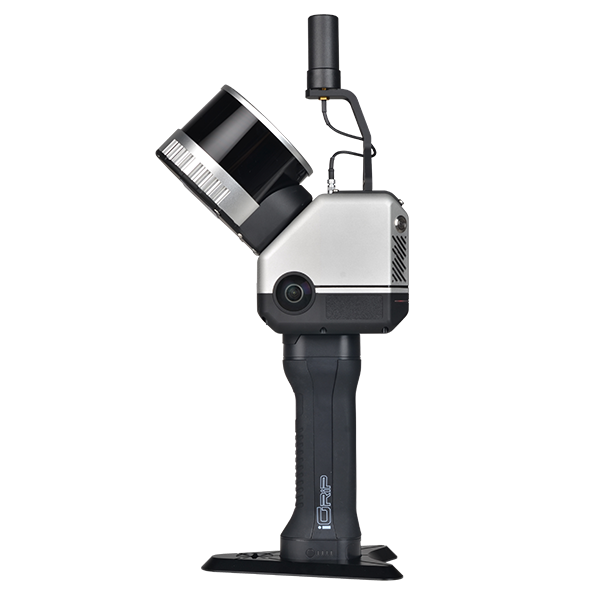

RobotSLAM II Handheld Laser Scanner

    inbuilt camera default, external camera optional inbuilt RTK for outdoor direct geo-referencing LCD screen display on board and APP operation both industry's first RGB light indicating work status

Model: RobotSLAM II

Download:

RobotSLAM II Handheld Laser Scanner Brochure

Specification

RobotSLAM II Laser Scanner RobotSLAM II：16-channel
RobotSLAM II Plus：32-channel
RobotSLAM II Ultra：32-channel
RobotSLAM II Scan Range RobotSLAM II：0.05 to 120 m
RobotSLAM II Plus：0.05 to 120 m
RobotSLAM II Ultra：0.5 to 300 m
RobotSLAM II Scan Rate RobotSLAM II：320,000 pts/sec
RobotSLAM II Plus：640,000 pts/sec
RobotSLAM II Ultra：640,000 pts/sec
RobotSLAM II Weight RobotSLAM II：1.75/2.2 kg
RobotSLAM II Plus：1.75/2.2 kg
RobotSLAM II Ultra：1.45/1.9 kg
RobotSLAM II Dimension 103 x 217 x 388 mm (L x W x H, basic package)
RobotSLAM II Laser Safety Class-1 (IEC 60825-1:2014) eye-safe
RobotSLAM II Laser Wavelength 905 nm
RobotSLAM II Echo Mode 8-bit, 2-3 returns max. (strongest return adopted)
RobotSLAM II Frequency 10 Hz
RobotSLAM II Scan FOV 360°(H) x 285°(V)
RobotSLAM II H. Angle Resolution 0.18°(10 Hz)
RobotSLAM II V. Angle Resolution RobotSLAM II：2°
RobotSLAM II Plus：1°
RobotSLAM II Ultra：1.3°
RobotSLAM II Relative Accurac best up to 1 cm
RobotSLAM II GNSS Differential GPS + Glonass + Beidou + Galileo, multi-constellation trackin
RobotSLAM II Signal Trackin 1698 channel
RobotSLAM II RTK Positioning Accurac RMS 1 cm + 1 ppm
RobotSLAM II CORS Access nano SIM card slot built in
RobotSLAM II Positioning Data Refresh Rate 100 Hz max.
RobotSLAM II Absolute Accuracy best up to 3-5 cm
RobotSLAM II Scanning Principle laser sensor 360° mechanical rotation
RobotSLAM II Accumulated Mileage Error 0.1%-0.2% (under the conditions without loop closure)
RobotSLAM II Housing Material aviation-grade aluminum, with high protection level and anti-interferenc
RobotSLAM II System Consumption 26 w
RobotSLAM II Power Supply battery handgrip (model iGrip) to plug in, external power supply available
RobotSLAM II Battery Unit model iGrip, 3500 mAh, 50 Wh, 14.4 V
RobotSLAM II Battery Endurance 1.5 to 2 hours per unit
RobotSLAM II IP Rating IP 54
RobotSLAM II Temperature -20℃ to 65℃ (operating); -40℃ to 85℃ (storage)
RobotSLAM II Device Connection Wi-Fi / Ethernet / type-C USB 3.0
RobotSLAM II Data Storage built-in SSD 512 GB (extendable upon request)
RobotSLAM II Data Download Wi-Fi / Ethernet / type-C USB 3.0
RobotSLAM II Inbuilt Camera 13 MP fish-eye, 2 nos. 26 MP in total
RobotSLAM II External Camera (option) panorama camera, imaging mode: 72 MP; video pano mode: 29.5 MP / 30 fps
RobotSLAM II APP RobotSLAM Palm
RobotSLAM II Process Software RobotSLAM Engine
RobotSLAM II On-site Process available
