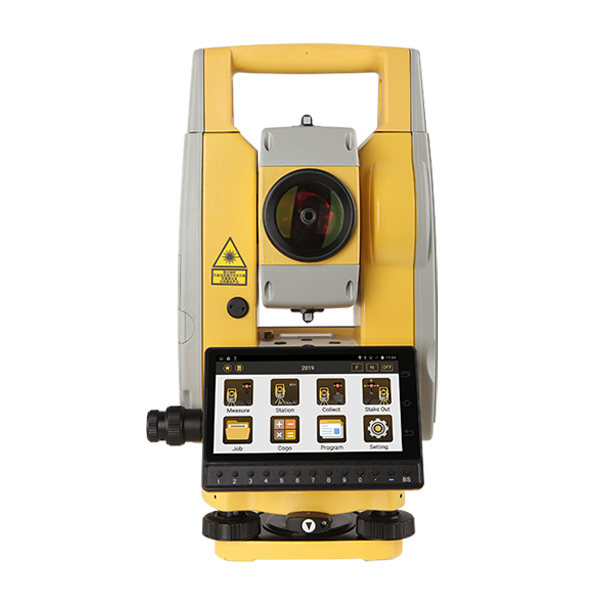

Model: N1

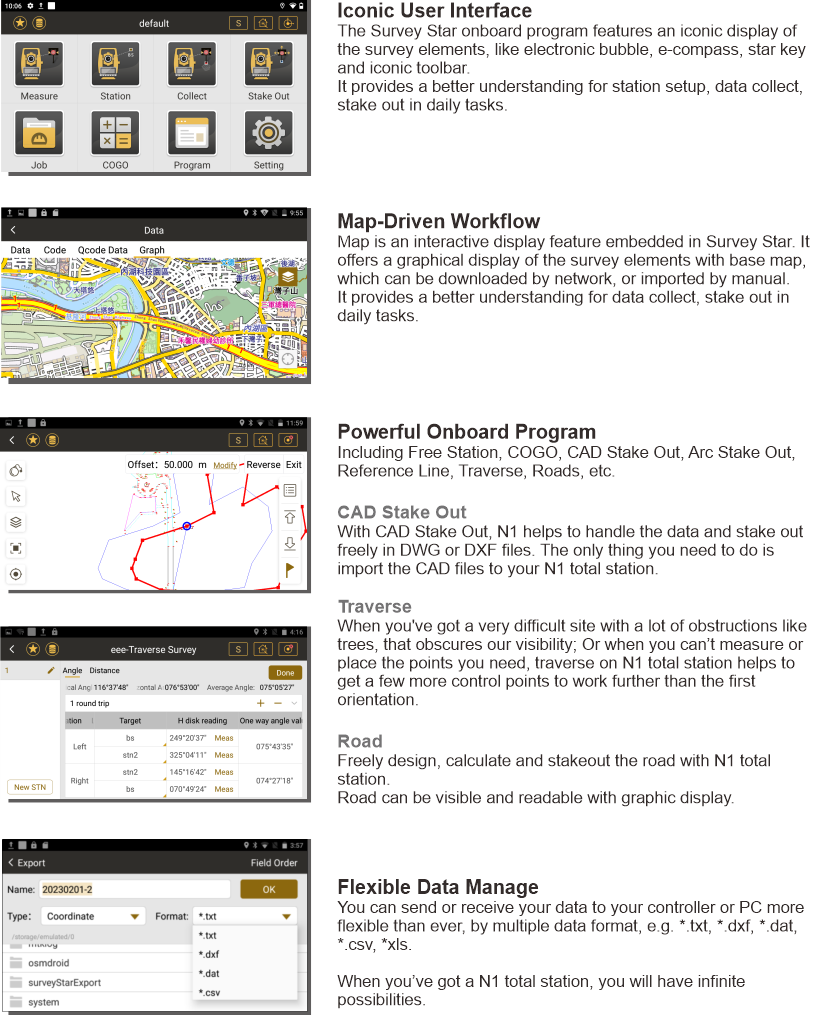

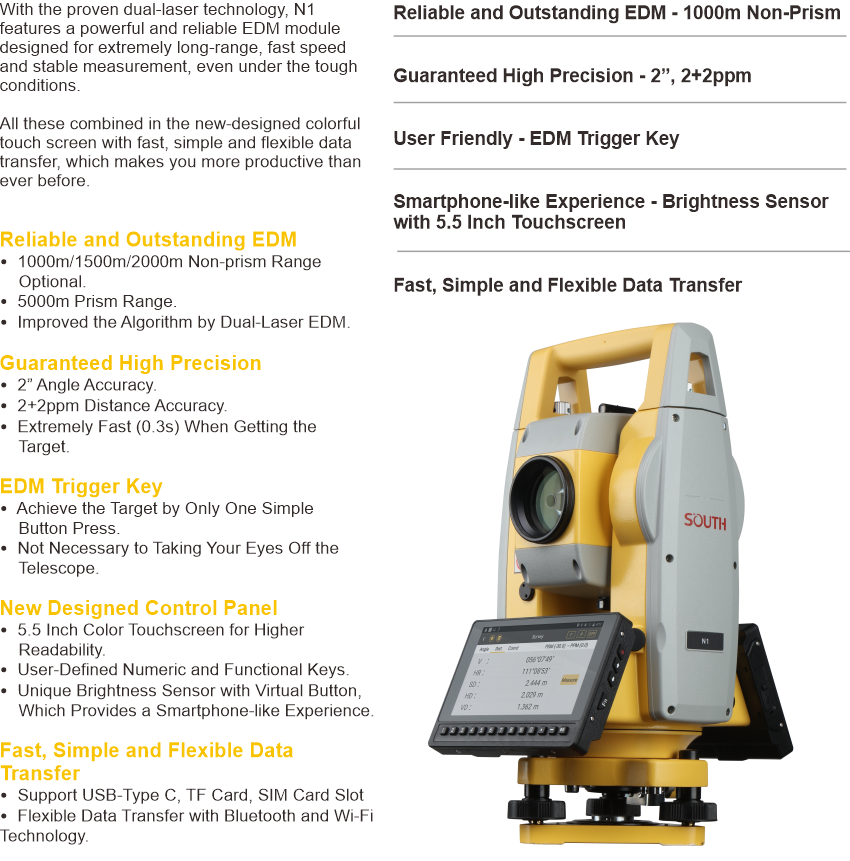

Features
Specification
— Digitizing Your Work by Survey Star —
Distance Measurement with Reflector | Range *1 | 5000m |
Accuracy | ±(2+2ppmxD)mm | |
Measure Interval | Fine: 0.3s, Tracking: 0.1s | |
Distance Measurement without Reflector | Range *2 | 1000/1500/2000m Optional |
Accuracy | ±(3+2ppmxD)mm | |
Measure Interval | 0.3-3s | |
Angle Measurement | Accuracy | 2” |
Measure Method (HZ/V) | Absolute Continuous, Diametrical | |
Diameter of Encoder Disk | 79mm | |
Display Resolution | 0.1” | |
Compensation | Liquid, Dual Axis Compensation | |
Compensator Setting Accuracy | 1” | |
Compensator Range | ±4' | |
Telescope | Image | Erect |
Tube Length | 154mm | |
Effective Aperture | 45mm (EDM:50mm) | |
Magnification | 30x | |
Resolving Power | 3” | |
Field of View | 1°30" | |
Focusing Range | 1.2m | |
Reticle | Illuminated, 4 Brightness Level | |
Vial | Plate Vial | 30"/2mm |
Circular Vial | 8'/2mm | |
Laser Plummet (Default) | Type | Laser Point, 4 Brightness Level |
Accuracy | ±1.5mm at 1.5M Instrument Height | |
Wavelength | 630-670nm | |
Laser Class | Class 2 /IEC60825-1 | |
Laser Power | <0.4mW | |
Optical Plummet (Optional) | Image | Erect |
Magnification | 3x | |
Focusing Range | 0.5m~∞ | |
Field of View | 5° | |
System Config | Operating System | Android 11.0 |
Processor | MT6762 | |
Internal Memory | RAM: 4GB; ROM: 64GB | |
Communication | Interfaces | - Micro SIM - USB Type C (OTG) - TF Card |
Network | 3G 2100/900 CDMA BC0 TDSCDMA A/F 4G LTE band1/3/7/38/39/40/41 |
|
Bluetooth | Bluetooth 4.0 | |
WLAN | Dual-Band Single Stream 802.11 a/b/g/n RF for Data Link | |
Microphone / Speaker | Available | |
Display | Type | 5.5 Inch, TFT LCD Screen, 720*1280 |
Battery | Type | Lithium-Ion, 7.4V |
Operating Time | 8 Hours | |
Dimension | Size | 350mm*170mm*217mm |
Weight | 5.7kgs | |
Environmental | Temperature Range (Operation) | -20°C ~ 50°C |
Protection | IP55 |
*1: Good conditions (good visibility approx.40km, overcast, twilight) *2: White objects with high reflectivity (KGC 90%) Note: all information above is subject to change without any prior notice.
