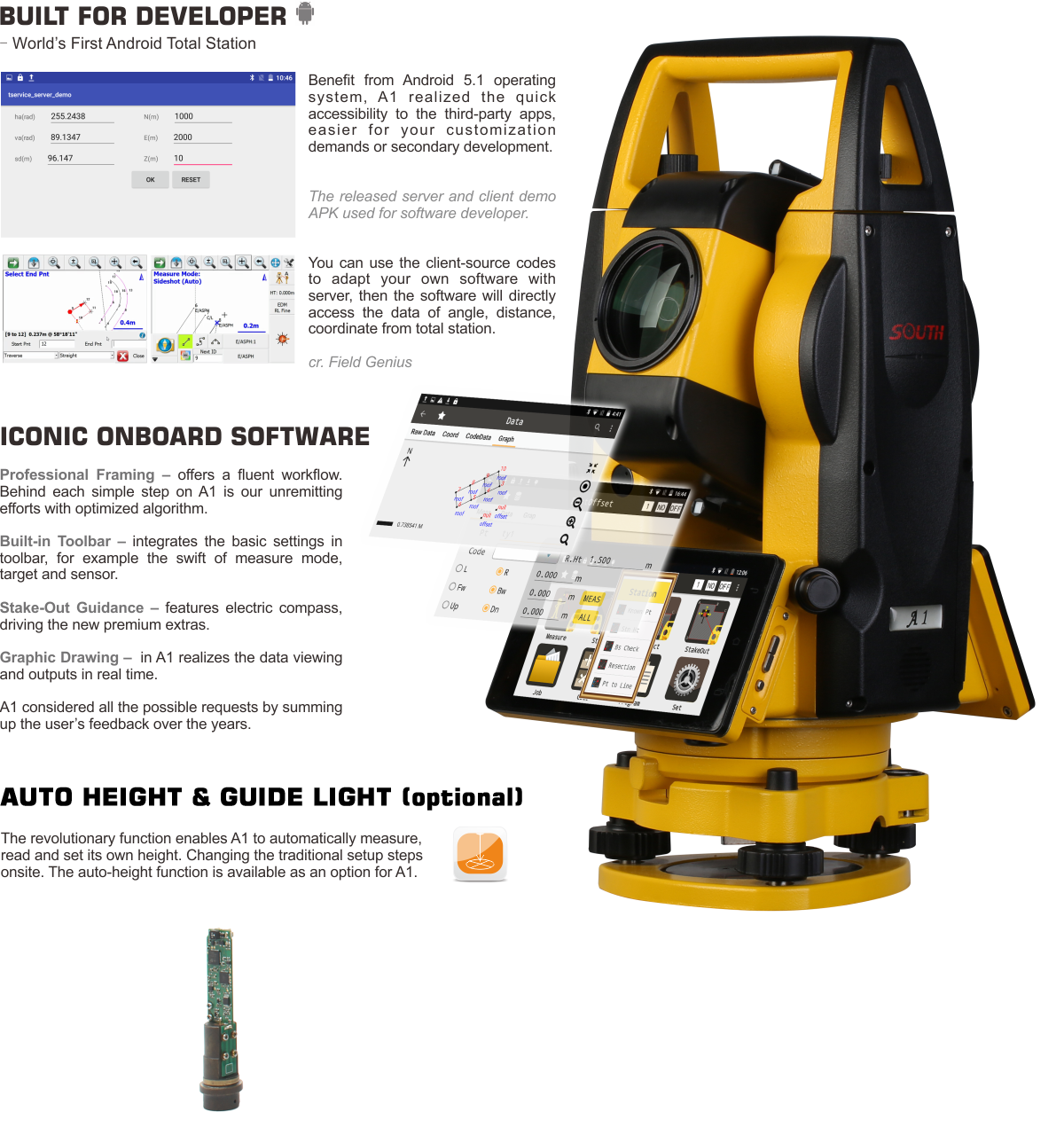

Model: A1
Features
Specification
Distance Measurement | Reflectorless | 1000m |
Single Prism | 5000m | |
Accuracy: Non Prism | 2+2ppm | |
Accuracy: Prism |
A1 1" : 1+1ppm A1 2" : 2+2ppm |
|
Sheet | 2+2ppm | |
Measurement Time |
1.2s In Fine 0.2s In Tracking |
|
Atmospheric Correction | Manual Input, Auto Correction | |
Prism Constant | Manual Input, Auto Correction | |
Temperature Correction | Sensor Reading | |
Distance Reading | Max: 99999999.999m Min: 1mm | |
Angle Measurement | Accuracy |
A1 1" : 1" A1 2" : 2" |
Method | Absolute, Continuous | |
Disk Diameter | 79mm | |
Detection Method | V: Quadruple, H: Quadruple | |
Angle Reading | Min: 0.1" | |
Telescope | Image | Erect |
Tube Length | 152mm | |
Effective Aperture | 45mm (EDM 47mm) | |
Magnification | 30x | |
Field Of View | 1°30' | |
Resolving Power | 3" | |
Minimum Focus Distance | 1.5m | |
Muitiple/Additive Constant | Not Adjustable | |
Keyboard And Display | Keyboard | 3 Keys |
Display | 5.0 Inches, Color Touch LCD | |
Resolution | 1280*720 dpi | |
Position | Face 1, Face 2 | |
Operation System | Operation System | Andorid 9.0 |
Processor | MT6735 | |
Memory | ROM: 32GB, RAM: 3GB | |
Interface | WIFI | 2.4G WIFI |
Bluetooth | BT4.0 | |
SD Card | None | |
Serial Port | Yes | |
Mini USB | None | |
Mirco USB | Yes | |
USB Flash Disk | Yes | |
SIM Card | Yes, 4G, 3G | |
Compensator | System | Liquid, Dual Axis |
Working Range | ±6' | |
Accuracy | 1" | |
Plummet | Laser Plummet (Default) | |
Accuracy | ±1.5mm @1.5m | |
Laser Brightness | 5 Levels Adjustable | |
Wavelength | 635nm | |
Laser Class | Class 2 | |
Laser Power | 0.5mW | |
Optical Plummet (Optional) | ||
Image | Erect | |
Magnification | 3x | |
Focusing Range | 0.5m -- | |
Field Of View | 5" | |
Accuracy | - | |
Battery | Type | Lithium |
Voltage | 7.4V | |
Operating time |
8 hours |
|
Vial | Plate Vial | 30" /2mm |
Circular Vial | 8' /2mm | |
General | IP Rate | IP55 |
Temperature Range | -20°C -- +50°C | |
Dimension | 206*200*353mm | |
Weight | 6.0kg | |
Others | Trigger Key | |
Others | Guide Light Optional | |
Others | Auto Height Optional |
Note: all information above is subject to change without any prior notice.
