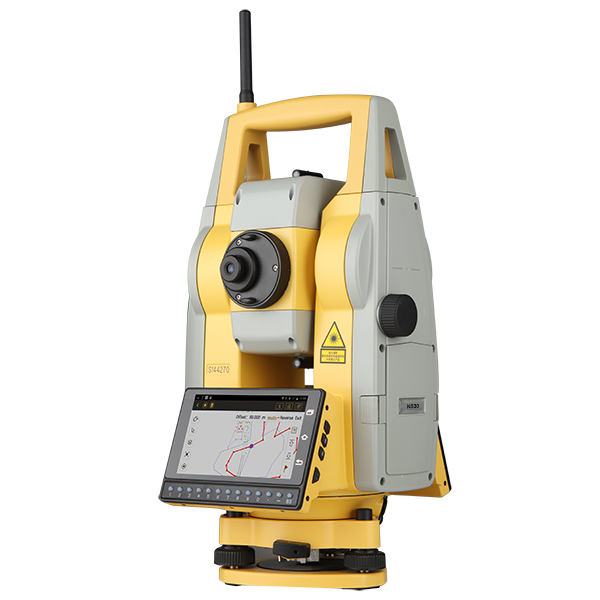

Model: NS30
Features
Specification
Operational video
With the excellent HYPER Drive Servo Technology and Zigbee Long-link module, NS30 can easily cope with remote control of one-man survey system and also adapt to all-weather monitoring projects; combined with Android onboard system, SOUTH NS30 will realize more possibilities in industrial applications. Benefit from the high accuracy 1" and 1mm+1ppm, NS30 has obvious advantages in high-precision projects such as high-speed railways, subways, bridges, and tunnels.

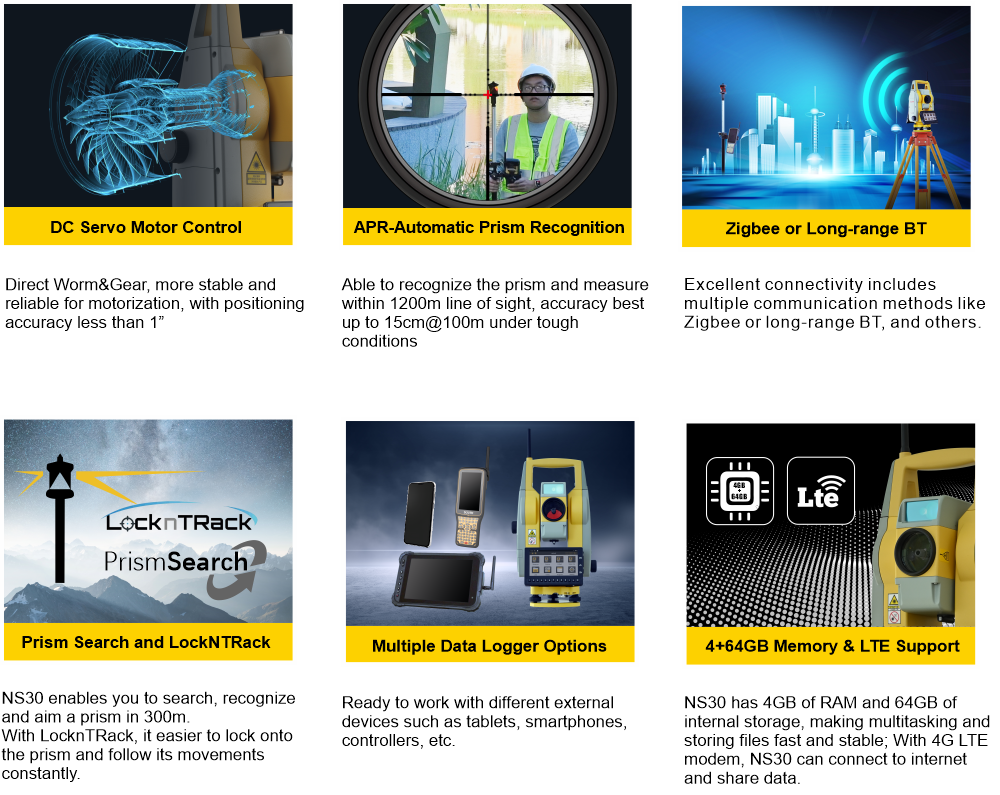

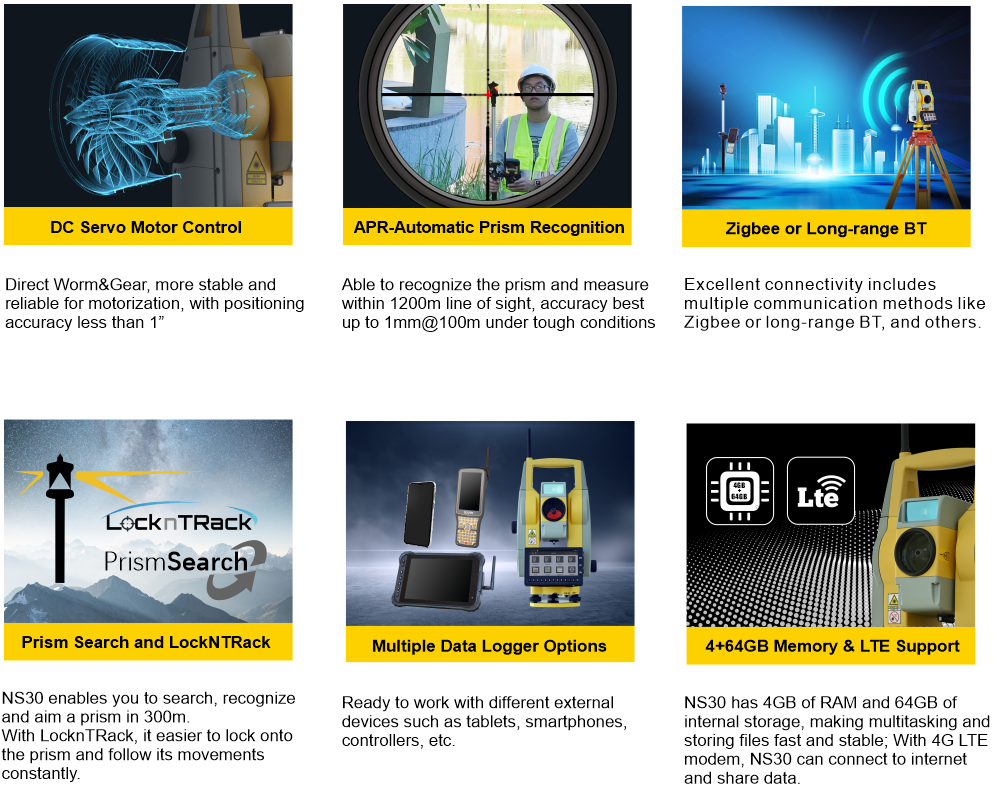

1 - APR (Auto Prism Recognition) + Prism Search
Blessed with the APR function, surveyor doesn’t need for precise aiming on the prism by eyes any more; within the range of 1.5m-1200m, you only need to turn the EDM to the vicinity (±1.5°) of the prism when measuring, it can be automatically corrected to the prism center.
Once Prism Search is activated, the NS30 starts to rotate in horizontal direction 360°by anti-clockwise direction, then next in vertical direction ±18°to find the prism and targeted to prism center precisely in the distance range of 1.5m-300m. It reduces aiming operation error by the surveyor, ensures the accuracy of the measurement data.
2 - LocknTRack + One-man Field Survey System
When enable the LocknTRack function, NS30 will quickly lock the prism ID and track the moving prism. It flexibly respond to various environments, and significantly improve the efficiency of survey and stakeout.

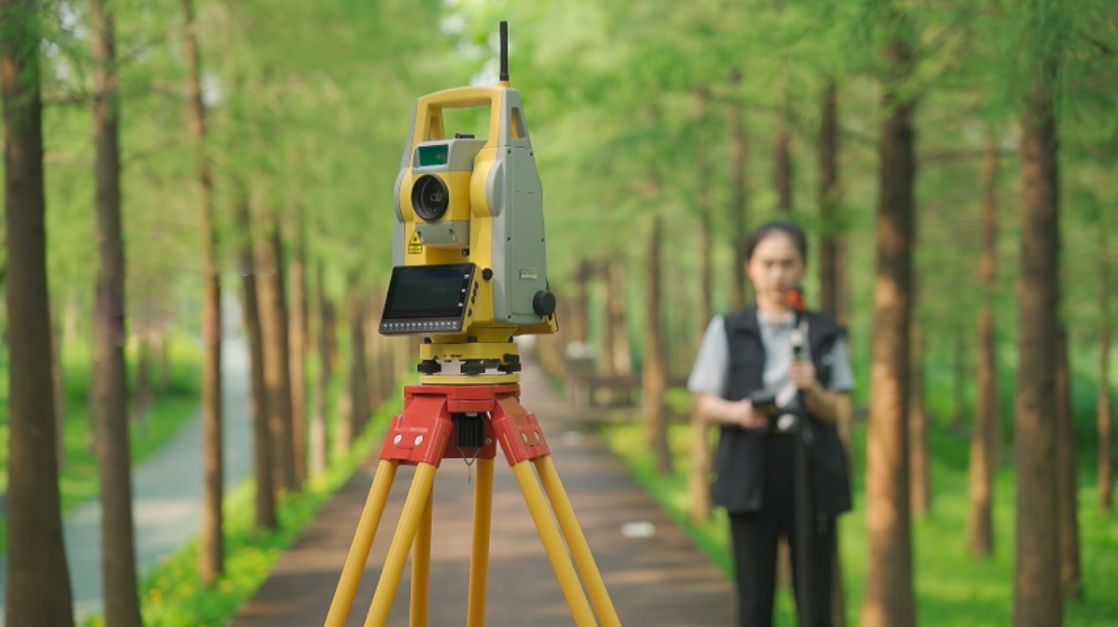

Powered by Zigbee technology, NS30 has a stable connection for remote control within the range of 450m to connect with H6 Plus Controller. One prism operator can complete the survey work, saving manpower also saving field working time, improving efficiency greatly.
3 - Powerful Onboard Software - Survey Star
NS30 equipped with Android 11 system and comes pre-installed with the powerful Survey Star software onboard. The Survey Star offers a graphic display of the survey elements on the base map, it also support the CAD stakeout with DWG, DXF files.
Using Survey Star Pilot on H6 Plus Controller, surveyor can setup the station, collect the points data and stake out flexibly as an one-man survey system, which is fast, flexible and powerful for your daily tasks.
Performance: Angle Measurement |
Accuracy | 1" |
Measure Method(HZ/V) | Absolute, continuous, 4 path detective | |
Diameter of Encoder Disk | 79mm | |
Minimum Reading | 1"/0.1" | |
Compensator Type | Dual axis, liquid photoelectric | |
Compensator Accuracy | 1" | |
Compensator Range | ±6' | |
Performance: Distance Measurement |
Laser Output*1 | Class 3R |
Measuring Range | Prism*2: 5000m Reflectorless*3: 1200m |
|
Accuracy | Prism: ±(1mm+1ppm•D) Reflectorless: D<500m: ±(2mm+2ppm•D), D>500m: ±(5mm+2ppm•D) |
|
Measuring Time | Prism: Fine: 0.3S, Tracking 0.1S Reflectorless: 0.3-3S |
|
Minimum Reading | 1mm/0.1mm | |
Robotic Specification: Motorization |
Motor Type | DC Servo Motor |
Rotate speed | 45°/s | |
Rotation Time F1/F2 | 2.9s | |
Robotic Specification: Prism Search |
Range | 3-300m |
Scope*4 | Horizontal: 360°; Vertical: ±18° | |
Search Time | Typically 3.5s per 90° | |
Robotic Specification: Auto Prism Recognition |
Range*5 | 3-1200m |
Time | 3-5s | |
Search Window | Customized | |
General Specification: Telescope |
Image | Erect |
Tube Length | 154mm | |
Effective Aperture | 45mm (EDM: 50mm) | |
Magnification | 30x | |
Resolving Power | 3" | |
Field of View | 1°30' | |
Minimum Focus | 1.2m | |
Reticle Illumination | 5 brightness levels | |
General Specification: OS, Interface and Data |
Operation System | Android 11 |
Display | 5.5inch, TFT color LCD with LED backlight, touch screen, dual face |
|
Keyboard | 13 keys with backlight, 4 keys for function | |
Processor | MT6833, 8 Core, 2.2GHz | |
Data Storage | Internal Memory: 4GB RAM, 64GM ROM Plug-in Memory Device: Type-C for USB OTG, TF card |
|
General Specification: Communication |
Interface | RS-232, Bluetooth 5.1 |
WLAN | 2.4G/5G/WIFI | |
SIM Slot | Micro Sim, 5G | |
Long-range Remote Control | Powered by Zigbee, 450m | |
General Specification: Levels |
Plate Level | 30"/2mm |
Circular Level | 8' | |
General Specification: Laser Plummet |
Type | Red laser dot, 635nm |
Accuracy | ±1.5mm at 1.5m | |
General Specification: Power Supply |
Operating Time (20℃) | 4 hours |
Battery | Li-ion rechargeable battery, 5400mAh | |
General Specification: Working Environment |
Working Temperature | -20°C to +50°C |
Storage Temperature | -40°C to +70°C | |
Protection /Humidity | IP55 / 95% non-condensing | |
General Specification: Dimension |
Size | 217mm*198mm*378mm (without antenna) |
Weight | 7kg (with battery) |
*1: A built-in rangefinder product equipped with a Class 3R laser has a harmful distance of 1000m (3300ft). Beyond this distance, the laser intensity will be reduced to Class 1. *2:Standard clear, no haze, overcast situations. Range and accuracy are dependant on atmospheric conditions. *3: With Kodak Gray Card White Side (90% reflective) *4/5: For 64mm round prism.
