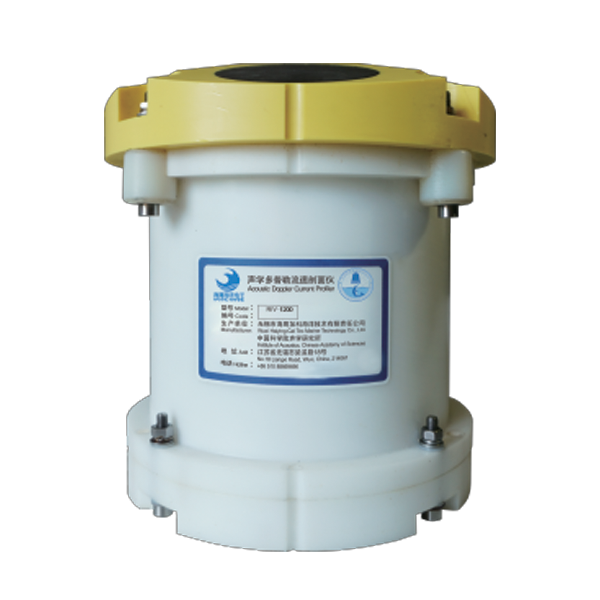

SOUTH S5

    The SOUTH S5 is a high-performance 5-beam ADCP engineered for inland, offshore and complex water environments. Leveraging advanced acoustic Doppler technology, it delivers precision velocity and discharge measurements even in high-velocity and highsediment conditions—the ultimate tool for smart hydrology and environmental monitoring.

Model: S5

Download:

SOUTH S5 Acoustic Doppler Current Profiler Brochure

Features

• 5-Beam Configuration: Four slanted beams for current profiling and one dedicated vertical beam for precision depth sounding up to 200m.

• High-Sediment Capability: Enhanced bottom-tracking algorithms specifically optimized for turbid and high-sediment waters.

• USV Integration: Seamless integration with the M20/M20 pro Unmanned Surface Vehicle (USV) for autonomous surveying and long-range wireless data transmission.

• Rugged Design: Internal frame architecture for superior shock resistance and easy maintenance in harsh field conditions.



RIV 3

Specification

Velocity Measurement Accuracy S5-300: ±0.3%±3mm/s
S5-600: ±0.25%±2mm/s
S5-1200: ±0.25%±2mm/s
Frequency
S5-300: 300kHz
S5-600: 600kHz
S5-1200: 1200kHz
Cell Size S5-300: 1~8m
S5-600: 0.2~4m
S5-1200: 0.05~2m
Number Of Cells 260
Ping Rate Max 20Hz
Resolution 1mm/s
Velocity Profiling Range ±20m/s
Distance Profiling Range S5-300: 1~150m
S5-600: 0.4~90m
S5-1200: 0.1~40m
Sensor Transducer 5-Beam
Compass Range: 0~360°; Accuracy: ±0.5° (Calibrated); Resolution: 0.01°
Temperature
 Range: -15°To 85°C; Accuracy: ±0.5°C; Resolution: 0.01°Cv
Tilt (Pitch and Roll) Range: ±90°;Accuracy: ±0.2°; Resolution: 0.01°
Bottom Tracking Velocity Profiling Range


 ±20m/s
Bottom Tracing Range S5-300: 2~200m
S5-600: 0.5~120m
S5-1200: 0.15~55m
Bottom Tracking Accuracy ±0.25%±2mm/s
Depth Range 0.2~200m
Central Beam Frequency 300kHz~400kHz
Physical Properties Weight 7.8kg In Air, 5kg In Water (Standard Configuration)
Size Height:275mm , Diameter:216mm
Storage Temperature -25 to 65°C
Operating Temperature -5 to 45°C
Depth rating 300m (Customizable)
Power Supply/Communication Baud Rate 2400 ~115200
Power Consumption Avg: 3W
Internal Recorder Size Up To 32GB
Protocol RS422, RS232, Or Ethernet
Input Voltage 9-36VDC
Transducer/Hardware Work Pattern Broadband And Other Working Modes
Shell Material Polyoxymethylene (Standard), Titanium Alloy, Or Aluminum Alloy Available
Structure Type Piston JANUS Structure

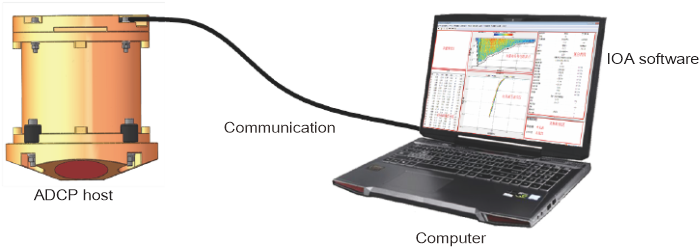

Software SOUTH CurrentPro – Integrated Field Data Acquisition & Navigation

Note: all information above is subject to change without any prior notice.
