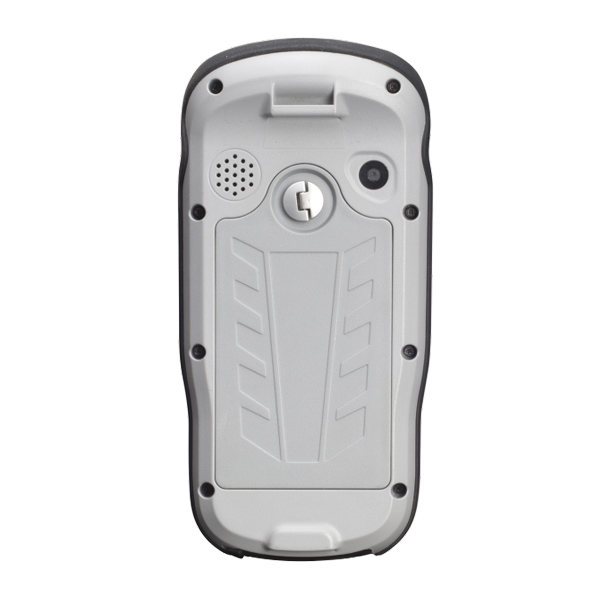

Model: T17N
Features
Specification
Highly productive with powerful features:
Windows Embedded handheld 6.5 OS
TI Cortex-A8 (1G Hz) processor
Flexible communication:
BT2.1+EDR
supports 300m long range Bluetooth (optional)
WCDMA, Wi-Fi, NFC
Built to survive:
IP65
1.2m drop proof
System | Operating system |
Windows Mobile 6.5 |
CPU |
TI Cortex-A8 (1000MHz) |
|
Memory |
512MB RAM, 1GB ROM |
|
Storage |
TF card, up to 32GB |
|
GNSS | Channels | - |
GPS | - | |
GLONASS | - | |
GALILEO | - | |
SBAS | - | |
A-GPS | - | |
Multimedia | Diplay & Resolution |
3.7 inch, 480 x 680 VGA |
Camera |
5.0 Megapixel AF |
|
Audio |
Integrated speakers, microphone, telephone handset |
|
Integrated sensors | - | |
Communications | USB |
Type-B USB |
Serial port |
DB9 |
|
Bluetooth |
2.1 + EDR.300m long range bluetooth (optional) |
|
NFC |
Optional |
|
Network |
WCDMA 3G |
|
WiFi |
802.11 b/g/n |
|
Electrical | Battery |
3.7V, Removable Li-lon 6500mAh |
Battery life |
Up to 10 hours |
|
Charging | - | |
Environment | Waterproof/Dustproof |
IP65 |
Shockproof |
Withstands 1.2m free drop onto concrete |
|
Operating Temperature |
-30℃ ~ 60℃ |
|
Storage Temperature |
-30℃ ~ 60℃ |
|
Physical | Dimension |
200mm(L) × 96mm(W) × 32mm(H) |
Weight | 515g | |
Keypad |
Digital soft keyboard character input |
Note: all information above is subject to change without any prior notice.
