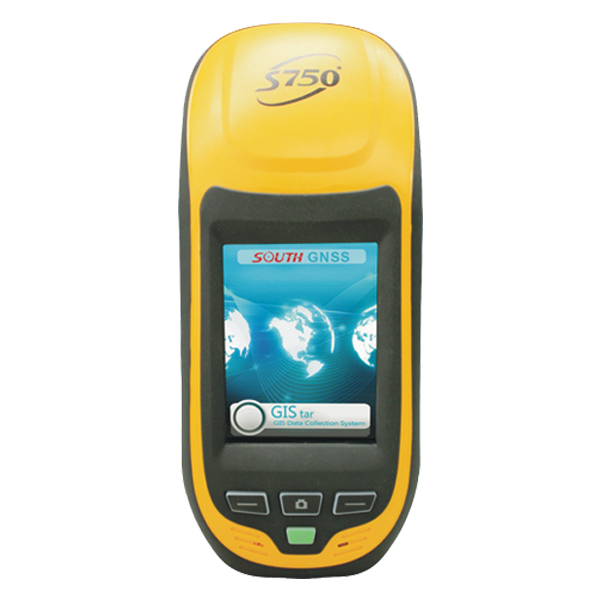

Model: S750
Features
Specification
SOUTH high precision GNSS receiver S750 is a easy and efficient land survey solution. L1 GPS, GLONASS and BDS signals tracking, this device provides high precision measurements even in demanding or obstructed environments.
The built-in 3G module, compatible with GPRS/GSM network signal, helps the unit more easier to access the CORS network seamlessly for RTD(Real Time Differential) corrections.
System | Operating system | Windows Mobile 6.5 |
CPU | 1GHz | |
Memory |
512MB RAM, 16GB NAND Flash |
|
Storage |
Extendable up to 32G |
|
GNSS performance | Channels | 220 |
GPS |
L1 C/A |
|
GLONASS |
L1 C/A |
|
BDS |
B1 |
|
GALILEO |
E1 (reserve) |
|
SBAS |
L1 C/A |
|
QZSS |
L1 C/A, L1 SAIF |
|
Data output |
NMEA-0183, TSIP |
|
I/O protocol |
RTCM2.3 (1/3/9), RTCM3.1 |
|
Update rate |
1Hz |
|
Reacquisition |
<1s |
|
Warm start | - | |
Cold start |
< 30s |
|
Accuracy | Single positioning |
2.5m |
SBAS positioning |
Horizontal:0.50m Vertical: 0.85m |
|
DGNSS |
Horizontal:0.25m + 1ppm Vertical:0.50m + 1ppm |
|
RTK(baseline<30km) | - | |
Multimedia | Camera |
5.0 Megapixel |
Display |
3.7 inch touch screen, resolution 640 x 480, |
|
Sensor |
Electronic compass, Barometer, G-Sensor, Thermometer |
|
Other function |
Speaker & Microphone integrated |
|
Extended function(optional) | - | |
Communication | network |
WCDMA 3G modem |
Bluetooth |
Bluetooth V2.0 Class2, Support EDR |
|
WIFI |
802.11b/g |
|
USB |
Mini USB2.0, support OTG and charging function |
|
Electrical | Battery |
3.7v, 7200mAh, Li-ion battery built in |
Battery life |
Typically 10 hrs or more |
|
Battery charging | - | |
Environment | Waterproof/Dustproof |
Tested to IP67 standard |
Shockproof |
Withstand drops from 1.5m to concrete |
|
Humidity | - | |
Operating temperature |
-20℃ ~ +60℃ |
|
Storage temperature |
-30℃ ~ +70℃ |
|
Physical | Dimension |
225mm(L) x 95mm(W) x 35mm(H) |
Weight | 0.66kg |
Note: all information above is subject to change without any prior notice.
